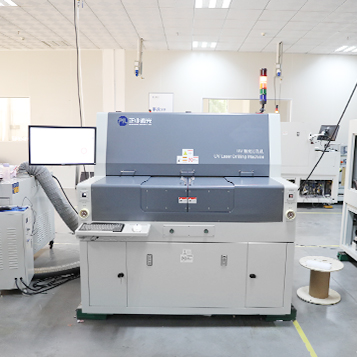

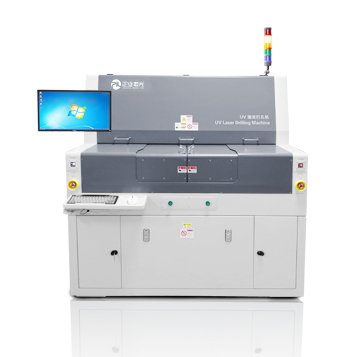

UV Laser Drilling Machine for Blind Holes JG23M

Model: JG23M

  • Usage
  • Features
  • Parameters
  • Video

Mainly drilling blind holes and open windows in copper and HDI board.

1.Close loop laser power control to maintain blind hole quality and stability.

2.Advanced flying drilling technology to improve drill efficiency and quality.

3.Three software management levels to easier machine maintenance and management.

4. Strong function to daily record,all working procedure is saved.

5.Automatically running by RTR and PTP types.

Specification of UV Laser Drilling Machine for Blind Holes (ASIDA JG23M)

MODEL

ASIDA JG23M

Applications

Applied for blind holes processing

System Processing Accuracy ( ZHENGYE Conditions)

±20μm

Laser power

11W@40kHz

Laser Wavelength

355nm

 Pulse width

90±30ns@40kHz

Frequency range

40-90kHz

Energy control

Yes

Objects

Maximum Processing Size

520mmX620mm

Table number

Single beam, single table

Dimensions (L×W×H)

1600mmx1650mmx1940mm

Weight

2300kg
