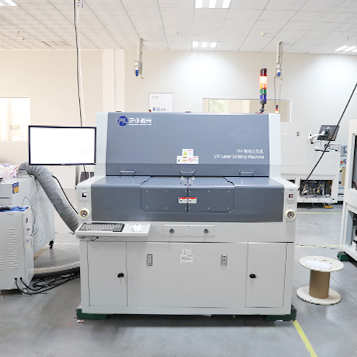

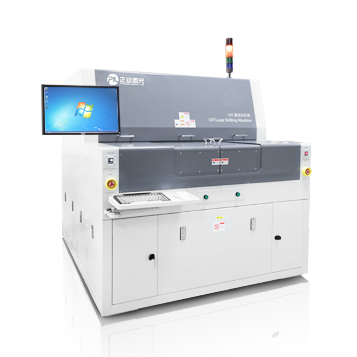

UV Laser Drilling Machine for Though Hole JG23T
Model:JG23T
  • Usage
  • Features
  • Parameters
  • Video

Drilling through holes in copper in PCB industry.



1.Only drilling through holes,high cost-performance rate.

2.Advanced flying drilling technology to improve drill efficiency and quality.

3.Three software management levels to easier machine maintenance and management.

4.Strong function to daily record,all working procedure is saved.

5.Automatically running by RTR and PTP.

Specification of UV Laser Drilling Machine for Through Holes (ASIDA JG23T)



MODEL

ASIDA JG23T

Applications

Applied for though holes processing

System Processing Accuracy ( ZHENGYE Conditions)

±20μm

Laser power

11W@40kHz

Laser Wavelength

355nm

 Pulse width

45 ns60ns@40kHz

Frequency range

0 -150kHz

Energy control

Yes

Objects

Maximum Processing Size

520mmX620mm

Table number

Single beam, single table

Dimensions (L×W×H)

1600mmx1650mmx1940mm

Weight

2300kg
