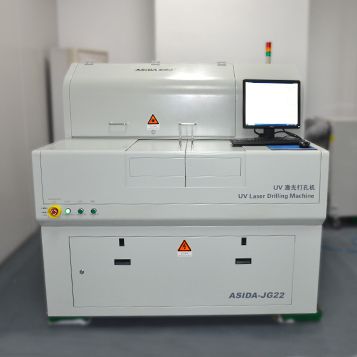

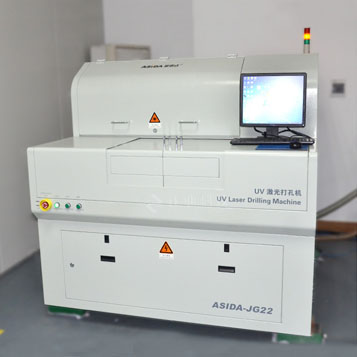

UV Laser Drilling Machine JG22

Brand : ASIDA
Model: JG22

Facebook
Qzone
LinkedIn
Sina Weibo
Twitter
Tencent Weibo
Pinterest
WeChat
Google+

Usage
Features
Parameters
Video

The machine is used to drilling through holes / blind holes of FPC, and cutting coverlay ,cutting FPC，Cutting rigid-flexible circuit.

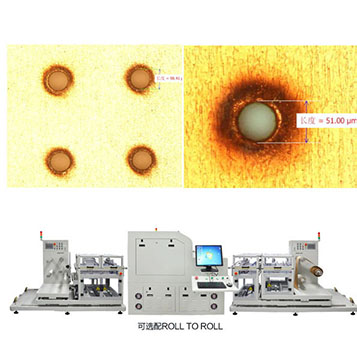

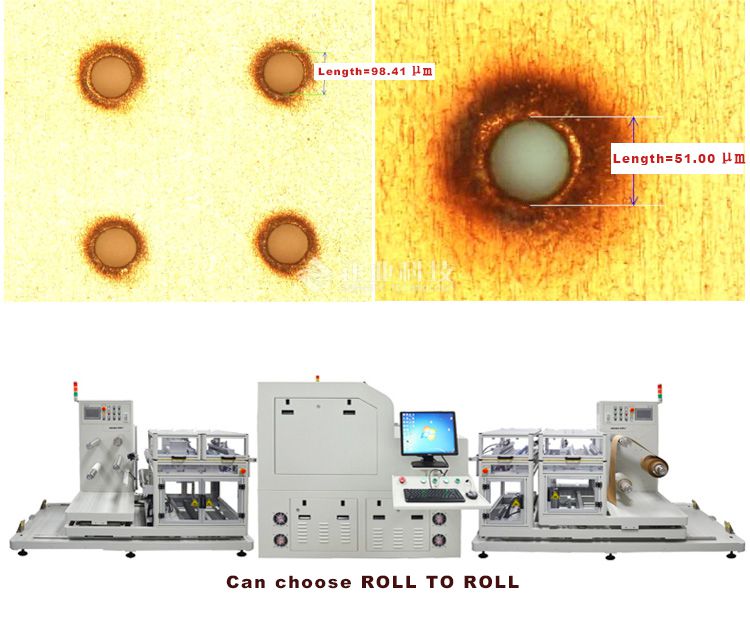

UV Laser Drilling Machine JG22 Sample :

Precision

Using linear motor, high resolution raster ruler, higher shrinkage compensation and advanced image processing technology, fully guaranteed drilling, cutting accuracy and quality.

High quality

Roundness is good and clean. The top and bottom diameter of hole are consistent. The min via hole diameter is 50um.

Highly intelligent and efficient

Auto-focus, auto-calibrate, auto-position, auto loading and unloading material by RTR.

Specification of UV Laser Drilling Machine (ASIDA JG22)
MODEL		ASIDA JG22
System Processing Accuracy ( ZHENGYE Conditions)		±25μm
Drilling Speed (ZHENGYE Conditions)		150 hole per second
Roundness		≥90%
Differences Between Up and Down Hole Diameter		≤12.5μm
Objects	Maximum Processing Size	540mmX650mm
	Processing Capacity	Via hoe drilling, PTH cutting
	Minimum Processing Hole Diameter	75μm
Laser Wavelength		355 nm
Pressured Air		>0.6MPa;500L per minute
Exhaust		30KPa,8.6CMM
Power Supply		Single phase, 220V,50Hz, 2.5KW
Dimensions (L×W×H)		1610mmx1660mmx1901mm
Weight		2900kg
