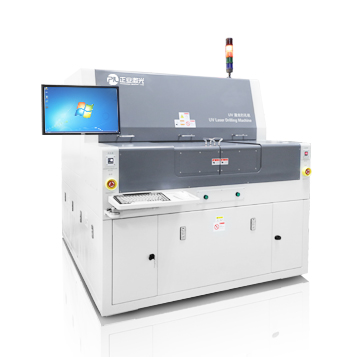

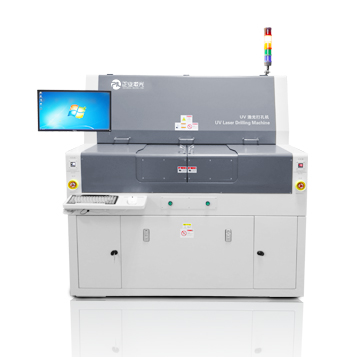

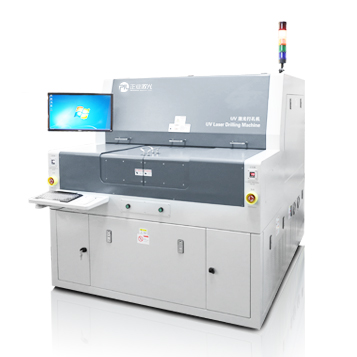

UV Laser Drilling Machine JG23
Brand:ASIDA
Model:JG23
  • Usage
  • Features
  • Parameters
  • Video

The machine is used in drilling though holes and blind holes of FPC flexible printed circuit board, cutting cover layer ,and cutting rigid -flexible circuit.

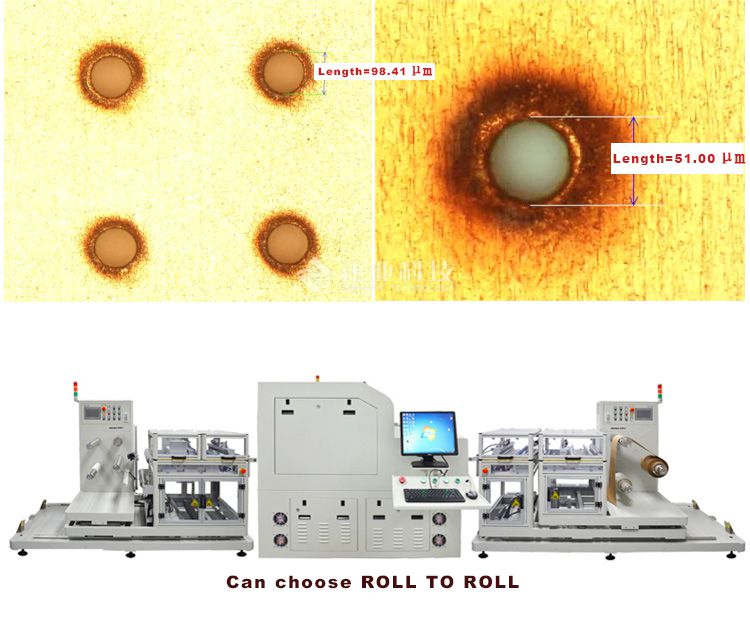

UV Laser Drilling Machine JG23 Sample :


(1)High efficiency

Flying drilling technology, table and galvanometer with linkages are applied in machine to improve blind holes and through holes production.

(2)High quality

Adopting imported laser, high-performance galvanometer, higher pulse frequency, higher power peak, more fine cutting path planning.

(3)Auto

There are functions with automatically precision correction, auto power compesation, auto focus and automatic correcting movement and high interactivity.

(4)Customized

Custom-made 250 mm or 500 mm wide RTR automatic loading system and various kinds of software functions.

(5)Security

Following standard to design and produce machine, to achieve better quality in every steps, long work time without any downtime.

(6)Stability:

Following standard to design and produce machine, to achieve better quality in every steps, long work time without any downtime.

(7)Reliability

AOM module is applied to correct power by single pulse sampling, to make drilling quality consistency and reliability.



Specification of UV Laser Drilling Machine (ASIDA JG23)



MODEL

ASIDA JG23

System Processing Accuracy ( ZHENGYE Conditions)

±20μm

Drilling Speed (ZHENGYE Conditions)

200 hole per second

Roundness

≥95%

Differences Between Up and Down Hole Diameter

≤12.5μm

Objects

Maximum Processing Size

540mmX650mm

Processing Capacity

Blind hoe drilling, PTH cuttingBTH cutting

Minimum Processing Hole Diameter

50μm

Laser Wavelength

355 nm

Pressured Air

>0.6MPa;500L per minute

Exhaust

30KPa,8.6CMM

Power Supply

3- phase, 380V,60Hz, 3.5KW

Dimensions (L×W×H)

1610mmx1864mmx1934mm

Weight

2200kg
