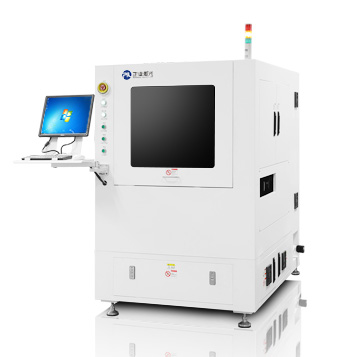

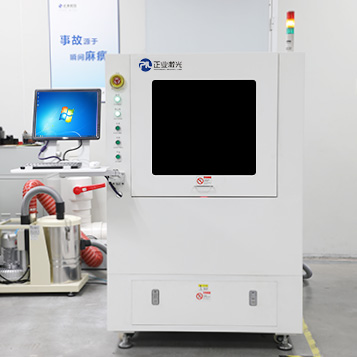

UV Laser Cutting Machine JG15C

Facebook
Qzone
LinkedIn
Sina Weibo
Twitter
Tencent Weibo
Pinterest
WeChat
Google+

Usage
Features
Parameters
Video

Mainly used in the circuit board industry, flexible board (FPC), flexible and rigid board (RF) and thin multi-layer board cutting forming.

(1) Good effect: smooth and neat cutting surface, no burr, slight carbonation;

(2) Automation: the processing of software plate is installed on the fixture, which flows through the flow platform, automatically clamps and automatically locates the processing, without manual feeding.After processing, automatic outflow.

Specifications of UV Laser Cutting Machine
Model	JG15C
Wavelength	355nm
Laser Power	Standard 15W
Laser Frequency	40-120kHz
Maximum Processing Size	200mm×270mm
Total Accuracy(Zhengye Conditions)	±50um
Motor Speed	500mm/s
Motor Positioning Accuracy	±4μm
Motor repeatability	±2μm
Cutting line width	15-28μm
Laser scanning range	40 mm x 40mm
Processing documents	.gbr & .dxf
Dimensions(L x W x H)	1100mm×1570mm×1700mm
Electric Power Supply	Host : AC220V 50～60Hz/1.5kW Vacuum cleaner : AC380V 50～60Hz/1.5kW
Weight	1500kg
Environmental Temperature	20±2℃
Environmental Humidity	≤60%RH
Air cleanliness	100k
