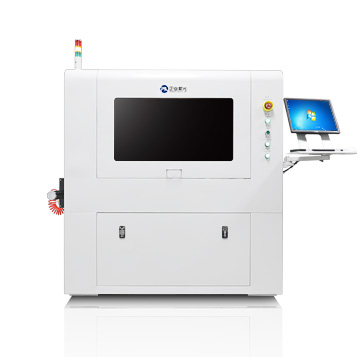

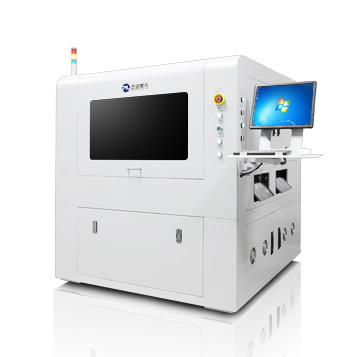

Roll To Sheet UV Laser Cutting Machine JG15DA

Model : JG15DA

Place of Origin: China

Packaging Details: Wooden Carton

  • Usage
  • Features
  • Parameters
  • Video

The machine is mainly used to opening windows for cover film. After the film roll is processed by laser, it is cut into single sheets. After the data is entered into the computer, all actions are fully automated, and labor costs are saved.

(1) A high degree of automation. The resource is automatically cut into single sheets after processing, saving labor costs;



(2) High-precision mode. Non-stitching processing for small graphics.

Specifications of UV Laser Cutting Machine

Model

JG15DA

Wavelength

355nm

 Laser Power

Standard 15W

Laser Frequency

40-120kHz

Maximum Processing Size

300mm×500mm(Double processing plates)

Total Accuracy(Zhengye Conditions)

±50um

Motor Speed

500mm/s

Motor Positioning Accuracy

±4μm

Motor repeatability

±2μm

Cutting line width

15-28μm

Laser scanning range

40 mm x 40mm

Processing documents

*.gbr & *.dxf

Dimensions(L x W x H)

1650mm×1520mm×1700mm

Electric Power Supply

Host  : AC220V 5060Hz/1.5kW

Vacuum cleaner : AC380V 5050Hz/1.5kW

Weight

1700kg

Environmental Temperature

20±2℃

Environmental Humidity

≤60%RH

 Air cleanliness

 100k
