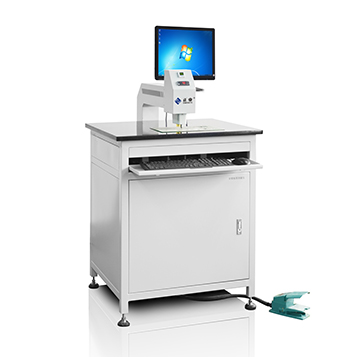

Long Arm Board Thickness measurement(CB21)
Brand: ASIDA
Model: CB21
  • Usage
  • Features
  • Parameters
  • Video

For precision measurement of copper clad laminate, the thickness of PCB and other boards. Three decimal of digital display, equip with foot switch to facilitate the measurement and get reading.

·Deep roar,can meet the measure requirements of large plate.

· Large thickness measurement range with high accuracy up to 0.003 mm.

· Arbitrary switching of mm/inch units .

· Measurement datas are displayed on LCD screen.

· Zero setting at any position.

· Granite countertops, durable and beautiful.

· Stable and reliable performance, simple operation, easy to use.



ITEM

SPECIFICAITON

MODEL

CB21

Appearance Dimension

800mmX882mmX1280mm(L X W X H)

Depth

530mm

Measurement Range of Board Thickness

0~255mm

Table Height

920mm

Table Siae

800mmX700mm

Accuracy

0.003mm

Rating COLTAGE/Current/Power

AC220V 50Hz/0.3A/100W

Weight

110Kg
