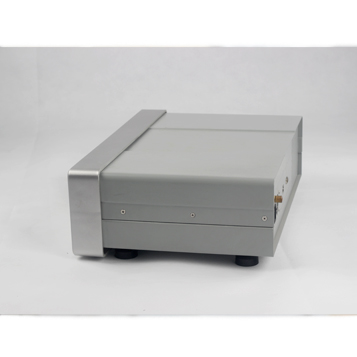

TDR Impedance Test Instrument ZK2130

Brand : ASIDA
Model : ZK2130

Facebook
Qzone
LinkedIn
Sina Weibo
Twitter
Tencent Weibo
Pinterest
WeChat
Google+

Usage
Features
Parameters
Video

The instrument is used in testing impedance of high frequency circuit boards which provides a fast,accurate,standard and economic solution to PCB Manufacturers.It is also applicable for impedance testing of wire and cable.

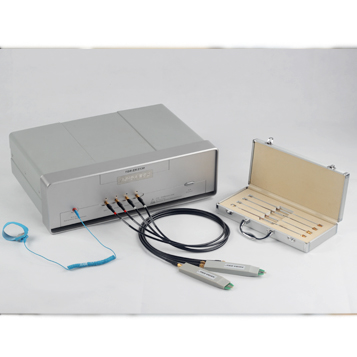

TDR Impedance Test Instrument ZK2130 sample :

Precision

The TDR impedance test instrument is equipped with high-precision probes, high frequency coaxial switch. With time-domain reflection，synchronous high-resolution sampling and multi points calibration techniques.

Efficient

Test procedure integrated, multi-tasking one-button operation.

Specialties

Displays test waveform analysis, statistical data analysis, automatically record test data, automatically generates test report and print, calibration open.

Model	ZK2130
Measuring Accuracy	±1% （50Ω）
Detection rate	≤1s for every point
Objects	Controlled Impedance Measurement Range：20～150 Ω
Objects	Measuring Range：0.05m～2m
Wave Bandwidth	3GHz
