TDR Impedance Test System ZK3185

Brand:ASIDA
Model: ZK3185

Facebook
Qzone
LinkedIn
Sina Weibo
Twitter
Tencent Weibo
Pinterest
WeChat
Google+

Usage
Features
Parameters
Video

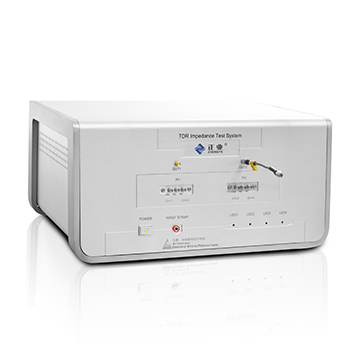

TDR impedance test system ZK3185 is suitable for high frequency circuit impedance test and S Parameters test.Provide a set of rapid,accurate standard and economic TDR impedance test and signal loss testing solutions for PCB manufacturers.It is also can be applied to the impedance test and S parameter test for wires and cables.

TDR Impedance Test System ZK3185 sample :

Precision

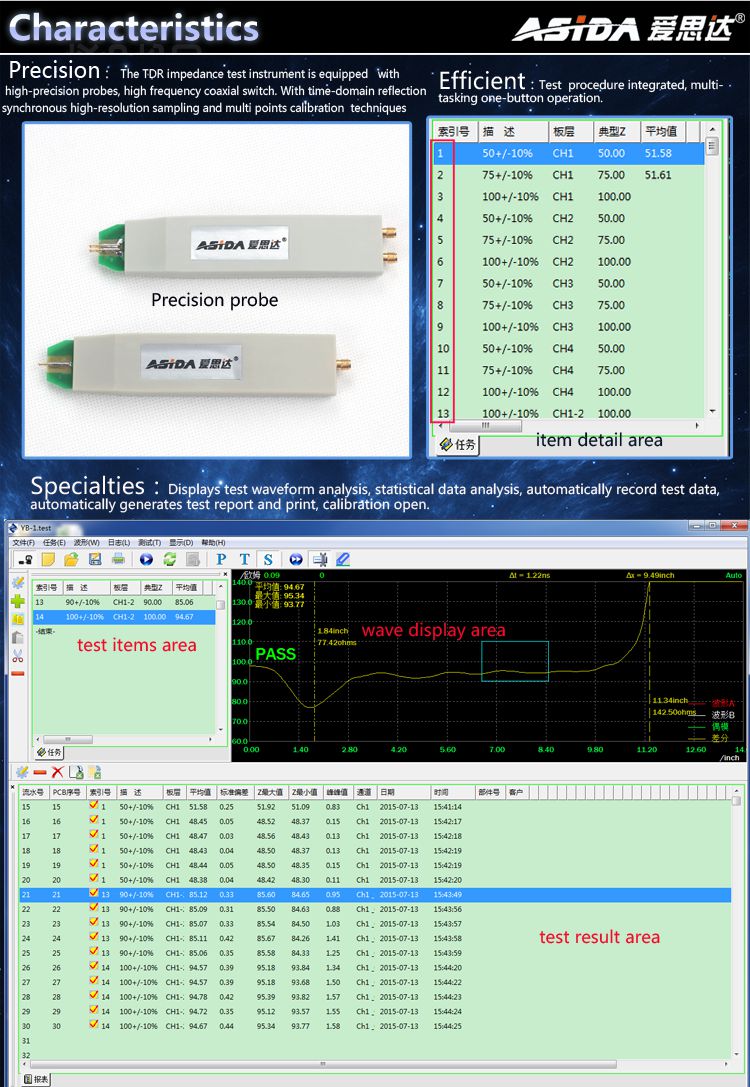

The TDR impedance test instrument is equipped with high-precision probes, high frequency coaxial switch. With time-domain reflection，synchronous high-resolution sampling and multi points calibration techniques.

Efficient

Test procedure integrated, multi-tasking one-button operation.

Specialties

Displays test waveform analysis, statistical data analysis, automatically record test data, automatically generates test report and print, calibration open.

Model	ZK3185
Measuring Accuracy	±1% （50Ω）
Detection rate	≤1s for every point
Objects	Controlled Impedance Measurement Range：20～150 Ω
Objects	Measuring Range：0.02m～2m
Wave Bandwidth	0.1GHz～8.5GHz
Loss test	S Parameter test
Dynamic range	≥100 DB
