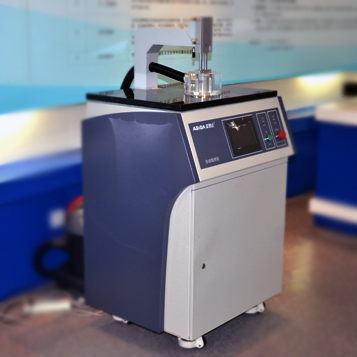

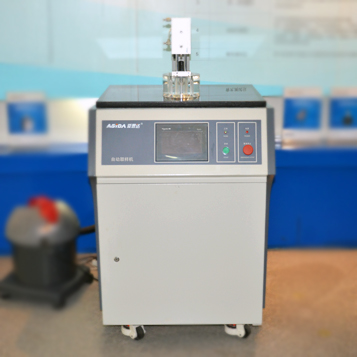

Automatic Sample Cutting Machine QY22

Brand : ASIDA
Model : QY22

Facebook
Qzone
LinkedIn
Sina Weibo
Twitter
Tencent Weibo
Pinterest
WeChat
Google+

Usage
Features
Parameters
Video

Automatic Sample Cutting Machine is used in minor sample cutting when conducting metallographic analysis of production processes and finished productions of copper clad laminate and rigid printed circuit board.

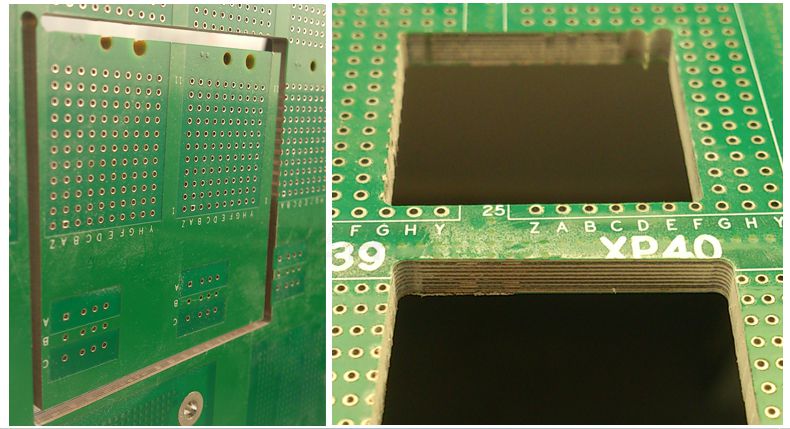

Automatic Sample Cutting Machine QY22 sample :

High-quality pneumatic components and accurate X-Y work table,which increases the accuracy of sample cutting.
Clear sample-cutting process,safe&reliable,no dust or noise.Patented design,flexible programming, wide range of sample cutting.

ITEM	SPECIFICATION
model	QY22
samples cutting dimension	5×5×mm～50×50mm
max width of available sample board	508mm
min dimension of available sample board	120×100mm
available sample board thickness	0.5～8mm
depth	280mm
milling cutter specification	Φ2.0 Φ2.4mm
