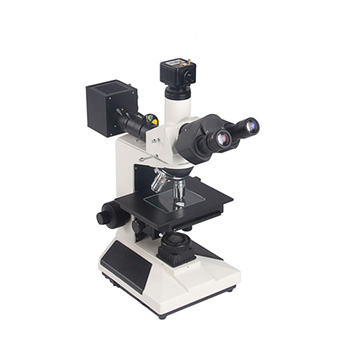

Metallographic Microscope JX22/JX23
Brand: ASIDA
Model: JX22/JX23
  • Usage
  • Features
  • Parameters
  • Video

ASIDA metallographic microscope is used in measurement and analysis of tiny-size objects like IC components and microsections.

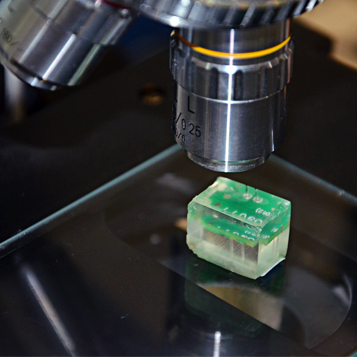

Metallographic Microscope JX22/JX23 sample :


· Optimal optical path to ensure best imaging effects.

· In house software can be customised to your required specification.

· User friendly software, easy to achieve accurate measurement and analysis of length, area, radius, axis, angle and other related dimensions.

· Ability to take still images, measure and store them simply.



ITEM

JX22

JX23

Main body

 Upright

Upright

Optional magnification

50×600×

50×500×

Electronic magnification

90×1150×

90×900×

Eye lens(wide view)

10×

10×

Field lens(achromatic)

,10×,40×,60×

,10×,20×,50×

Lighting system

Drop lighting 6V30W, adjustable halogen

 brightness with effect from polarizer

Drop lighting 12V100W, adjustable halogen

 brightness with effect from polarizer

CCD model

WD-300C

WD-300C2/TCC-2.0CL

CCD camera

megapixel

megapixel

 Accuracy

±0.0006mm

±0.0006mm
