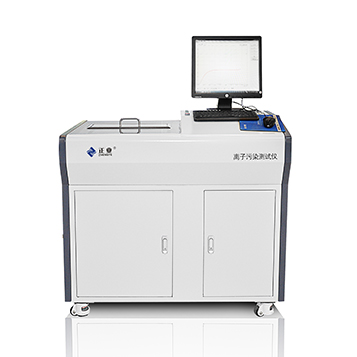

Dynamic/Static Ionic Cleanliness Tester LZ22
Brand:ASIDA
Model: LZ22
  • Usage
  • Features
  • Parameters
  • Video

Ionic Contamination Tester is suitable for the ion contamination levels testing of bare PCB board as well as PCBA before and after cleaning and coating processes.

Precise

Adopting online high-precision conductivity meter, fully enclosed circulatory system, mixed anion and cation exchange resins, as well as real-time processing algorithms and temperature compensation technology.



Efficient

Adopting heat extraction and high-speed loop flushing technology.



Characteristic

Unique dynamic / static test mode.



Customize

Volume can be customized according to the requirements.

Item

LZ22

Test Method

Static/Dynamic testing

Volume of Water Tank

352mm×70mm×600mm(L×W×H) about 15L

Machine Size

1050mm×600mm×920mm(L×W×H)

Test size

10 CM × 20 CM ~35 CM × 60 CM

Power

1300W

Machine Weight

115Kg

Test Accuracy

±5%

Resolution of Conductivity

0.001us/cm2

Electrode Resolution Range

0.0001us/cm2~20 us/cm2 (NaCl:300 ~ 100000 ug )

Measuring Circuit Board Area

1000-4200cm2

Proportion of Extract

0.85~0.855

Reference

66/100

Power Requirement

AC220V 50HZ

Working Environment Temperature

22℃±15

Efficiency

515 minutes every time

Working Extract Temperature

40℃±2℃

Life of  the filter

0.12 us/cm -16000pcs

IPA Loss

Test 30 pcs-1L

The heating Efficiency

40℃±2℃ ~ 15-25 Min
