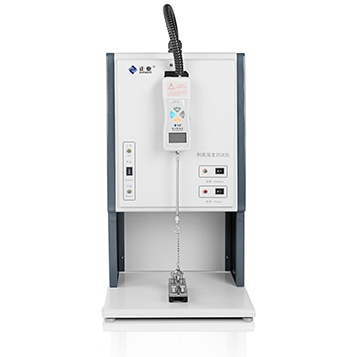

Peel Strength Tester BL12

Brand: ASIDA
Model: BL32

Facebook
Qzone
LinkedIn
Sina Weibo
Twitter
Tencent Weibo
Pinterest
WeChat
Google+

Usage
Features
Parameters
Video

Peel Strength Tester is used in measuring adhesion strengh between tinsel and baseplate of copper clad laminate or printed circuitboard.

1.Patented design,attractive appearance.
2.It is equipped with ASIDA high-quality force gauge,which makes accuracy.
3.You can freely switch the units including N,kg,lb.

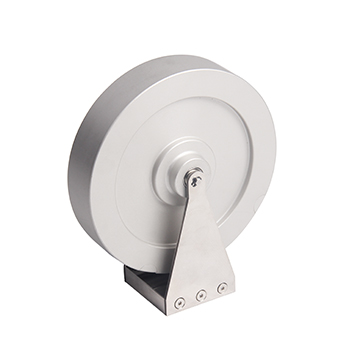

4.You can freely change the testing jig.This machine is equipped with a flexible jig and a rigid jig.
5.Maximum,minimum,average of force can be measured.
6.It is equipped with appropriative software and can print the graph of force.
7.Standards-compliant Conform to 7.1 of IEC-326-2 Printed Circuit Board Testing Method;Conform to GB/T4677-2002 7.1.1;GB/T13557-92;IPC-TM-650 2.4.9 standards.

ITEM	SPECIFICATION
Model	BL32
MAX peel stroke	58mm
MAX pull force	5kgf（or 49N or 11lbf）
Measurement accuracy	±0.1N（Base on 49N）
Measurement speed	50.8±2.5mm/min
