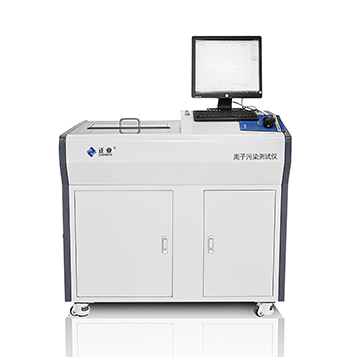

Dynamic/Static Ionic Contamination Tester LZ22A
Brand : ASIDA
Model: LZ22A
  • Usage
  • Features
  • Parameters
  • Video

Ionic Contamination Tester is suitable for the ion contamination levels testing of bare PCB board as well as PCBA before and after cleaning and coating processes.

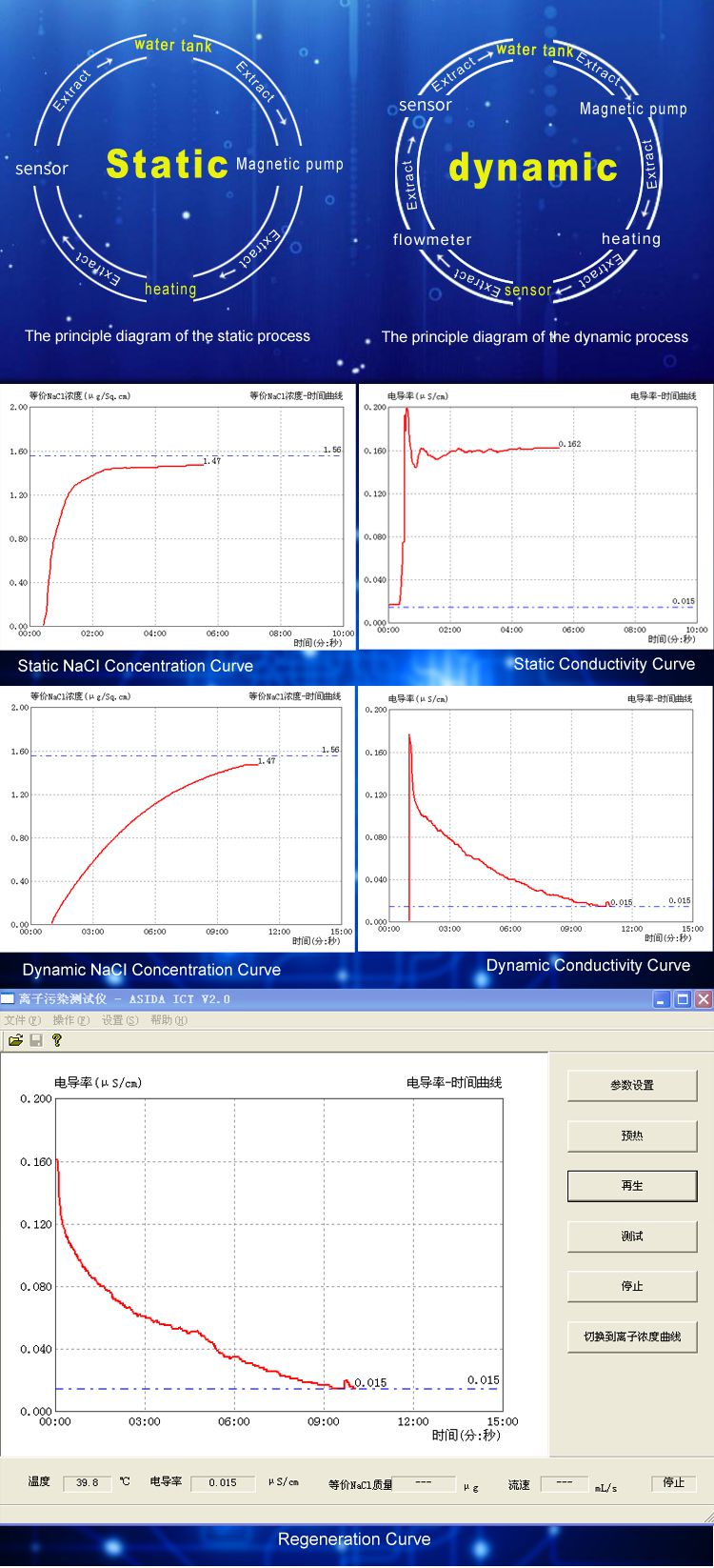

Dynamic/Static Ionic Contamination Tester LZ22A sample :


Precise

Adopting online high-precision conductivity meter, fully enclosed circulatory system, mixed anion and cation exchange resins, as well as real-time processing algorithms and temperature compensation technology.



Efficient

Adopting heat extraction and high-speed loop flushing technology.



Characteristic

Unique dynamic / static test mode.



Customize

Volume can be customized according to the requirements.

Item

LZ22A

Test Method

Static/Dynamic testing

Volume of Water Tank

680mm×65mm×680mm(L×W×H) about 30L

Machine Size

1401mm×600mm×1000mm(L×W×H)

Test size

10 CM × 40 CM ~68 CM × 68 CM

Power

1700W

Machine Weight

180Kg

Test Accuracy

±5%

Resolution of Conductivity

0.001us/cm2

Electrode Resolution Range

0.0001us/cm2~20 us/cm2 (NaCl:300 ~ 100000 ug )

Measuring Circuit Board Area

1000-4200cm2

Proportion of Extract

0.85~0.855

Reference

66/100

Power Requirement

AC220V 50HZ

Working Environment Temperature

22℃±15

Efficiency

515 minutes every time

Working Extract Temperature

40℃±2℃

Life of  the filter

0.12 us/cm -16000pcs

IPA Loss

Test 30 pcs-1L

The heating Efficiency

40℃±2℃ ~ 15-25 Min
