This product is mainly used for aluminum packing battery. X-ray penetrate the inner of battery with X-ray transmission
principle. Automatic detect the internal structure and the coverage of the positive and negative of the battery.
Automatically sorting OK/NG products.

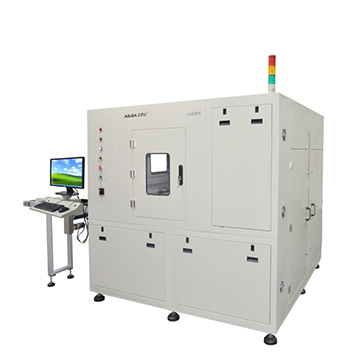

Online Automatic X-ray Inspection Machine XG5300 / XG5310 sample :
1.Automatic detection
High automation, automatic loading,detection, sorting qualified/NG products.
2.High efficiency
The machine is suitable for batch inspection with cam indexers controlling eight degrees turntable running in high speed and two sets of imaging system.
3.Images and data real-time online display
Test data and images of many parts of the same battery is shown in the same software interface, convenient observation recognition.
4.Quick changing model
Only replace jig if changing test products.
5.Safety protection
The whole equipment safety interlock, triple protection function, any part of the fuselage surface radiation meet safety standards.
Inspection process:
Loading products:
Testing battery is loaded automatically into the X - RAY detection equipment.And transmission speed can be adjusted according to requirement.
Inspection work place:
Four indexing turntable grab the battery and transit it to eight degrees detection place in high speed . 2 sets of online detection of imaging system.
Jig locating:
All testing products are placed to the same position to ensure the accuracy of measurement.
Unloading production:
Unloading in three channels, OK/ tab NG/ plates NG.
