Semi-automatic X Ray inspection machine XG5010
  • Usage
  • Features
  • Parameters
  • Video

The X-ray inspection machine XG5010 is widely used in lithium battery, SMT, LED, electronic products processing and

 casting manufactures. It mainly analyses internal defects of product with images in high quality, high magnification and

 high resolution.

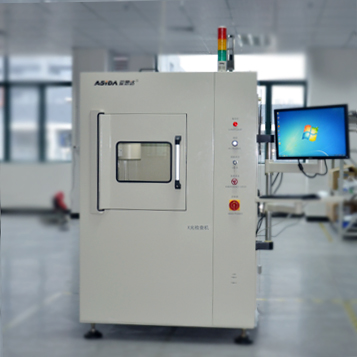

Semi-automatic X Ray inspection machine XG5010 sample :

\"\"


1)Automatic detection
Automatic detection alignment of negative and positive of battery, and statistics the maximum/minimum values at the same

 time.


(2)Automatic judgment
Automatic make a judgement of NG/OK products according to the setting standard.


(3)Convenient and quickly
The machine is with accurately position, quick and convenient to user.


(4) Safety protection
Doors are equipped with photoelectric sensor. The machine will immediately stop and get into a protection model if any

 door is open.


Specifications of X -ray Inspection Machine XG5010

X-ray Tube

Tube Voltage

MAX 90 KV

Tube Current

200 uA (Software MAX 89uA)

Focal Spot Size

5μm

Cooling Mode

Strong wind cooling

Image-forming  System

Field of View Range

2\"/4\"

Resolution

75/110lp/cm

X-CCD Resolution

1392*1040pixels

Geometrical magnification Times

12-48X

Detection speed and accuracy

Repeat testing accuracy

60μm

Software testing speed

≥1.5s per test point
(excluding loading / unloading time)

Loading platform

Standard size

515mm X 460mm

Effective size

450mm X 410mm

loading weight

≤5Kg

Safety standard

International Radiation Safety Standards

≤1usv/hr

Others Parameters

Computer

Display: 22’’ ;

Processor: I5;

Memory: 4G;

Hard device: 500G;

Dimension

1136mm X 1076mmX1730mm

Weight

About 750kg

Power

AC220V 10A

Temperature & Humidity

25±3℃,
