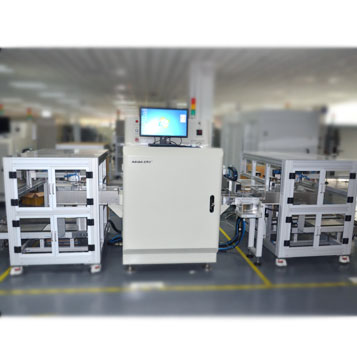

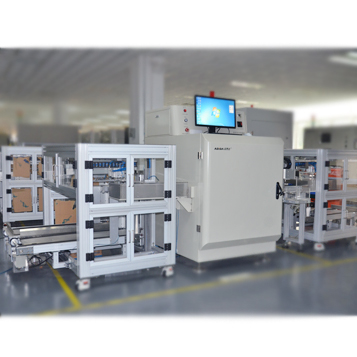

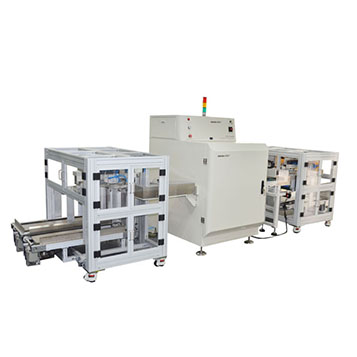

Online X Ray Inspection Machine for Li-polymer Square Battery XG5100

Product

Contact us

TEL:+86-769-8898-5065
Mobile:+86-13712542526
Skype: jmd924218517
E-mail:info@zhengyee.com

Online X Ray Inspection Machine for Li-polymer Square Battery XG5100

Facebook
Qzone
LinkedIn
Sina Weibo
Twitter
Tencent Weibo
Pinterest
WeChat
Google+

Usage
Features
Parameters
Video

The equipment is mainly used to square battery industry.

1. Automatic sorting

Automatic detection and sorting OK/NG products.

2.Real-time monitoring,

Real-time monitoring the state of all actions, signal, hardware,and show on the software interface.

3.Images and data real-time online displaying.

Test data and images of many parts of the same battery is shown in the same software interface, which is convenient observation recognition.

4.Safety protection
The whole equipment safety interlock, triple protection function, any part of the fuselage surface radiation meet safety standards.

Specifications of X -ray Inspection Machine XG5100
X-ray Tube	Tube Voltage	110KV
	Tube Current	450 uA
	Focal Spot Size	5μm
	Cooling Mode	Strong wind cooling
Image-forming System	Field of View Range	235mm×13mm
Detection Precision	Repeat accuracy	60μm
Efficiency	Detection Efficiency	≥20 PPM
	False Rate	≤2%
	Missing Rate	0.0%
	Qualified Rate	≥99.5%
Safety standard	International Radiation Safety Standards	≤1usv/hr
Others Parameters	Computer	Display: 22’’ ; Processor: I5; Memory: 4G; Hard device: 500G;
	Dimension	2800mm X 1300mmX1500mm
	Power	AC380 V / 50 HZ
	Temperature & Humidity	25℃±3℃,RH 50% ± 10%
