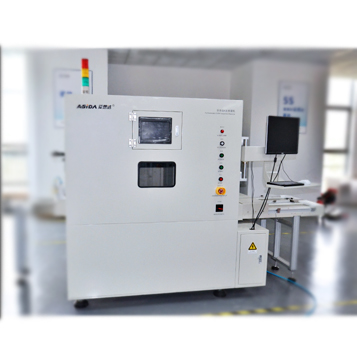

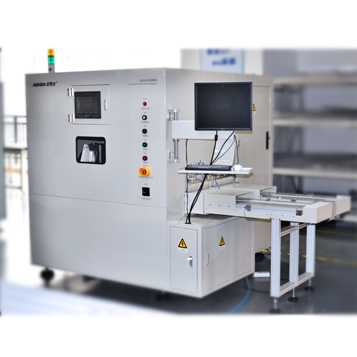

Layer-built Battery Online X-ray Inspection Equipment XG5200D

Facebook
Qzone
LinkedIn
Sina Weibo
Twitter
Tencent Weibo
Pinterest
WeChat
Google+

Usage
Features
Parameters
Video

The X-ray is emitted by a generator,penetrates through the battery. It is received and taken pictures by

imaging system. Software automatic sort qualified /NG product by processing and measurement the

pictures.

1. Automatic sorting

Automatic detection and sorting OK/NG products.

2.Real-time monitoring
Real-time monitoring the state of all actions, signal, hardware. And show on the software interface.

3.Images and data real-time online display.
Test data and images of many parts of the same battery is shown in the same software interface, convenient observation recognition.

4.Safety protection
The whole equipment safety interlock, triple protection function, any part of the fuselage surface radiation meet safety standards.

-ray Tube	Tube Voltage	MAX 110KV
	Tube Current	MAX 450uA
	Focal Spot Size	5μm
	Cooling Mode	Strong wind cooling
Image-forming System	Field of View Range	4"/6"
	Resolution	80lp/cm
	Camera Resolution	752*480pixels
Detection Precision	Repeat accuracy	60μm
Efficiency	Detection Efficiency	≥6ppm
	False Rate	≤2%
	Missing Rate	0.0%
	Excellent Products Rate	≥99.5%
Safety Standard	International Radiation Safety Standards	≤1usv/hr
