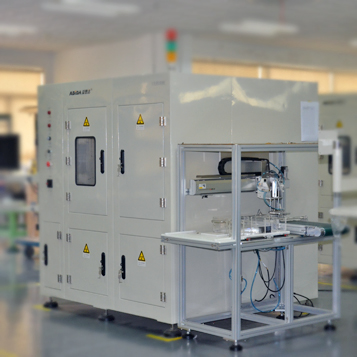

Online Automatic X-ray Inspection Machine XG5130A
  • Usage
  • Features
  • Parameters
  • Video

The X ray machine is used to detect rectangular soft packaging lithium battery and automatic sorting OK/NG product.

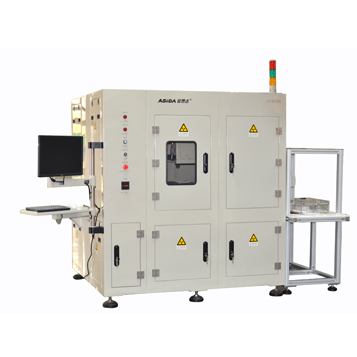

Online Automatic X-ray Inspection Machine XG5130A sample :

High productivity

 Suitable for lots of square soft packing polymer battery.


High testing efficiency

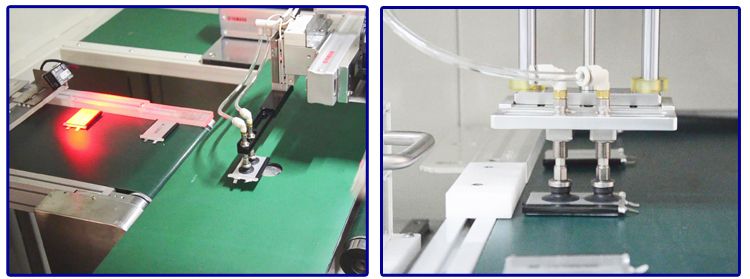

A set of imaging system, two sets of the manipulator alternately, realize the Online detection analysis,and daily inspection more than 30 k.


Automatic sorting

Automatic detection and sorting OK/NG products.


Modular design with good expansion

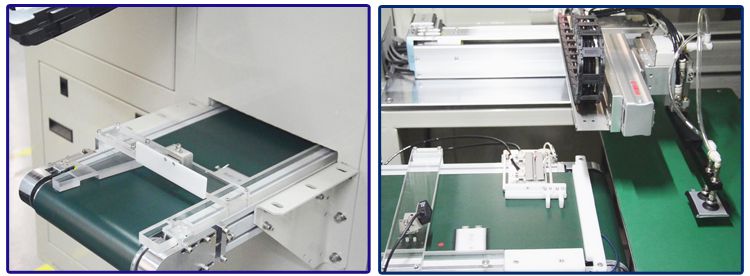

Automatic battery loading and unloading.


Fast model changing

Fast changing different model battery, replacement time within 0.5 H ~ 2 H.


Safety and environmental protection
The whole equipment safety interlock, triple protection function, any part of the fuselage surface radiation meet safety standards.


Software functions:
1. Automatic measure alignment of negative and positive, and statistics the maximum and minimum values.
2. Automatic judge and sorting OK/NG products.
3.Good tracking system. Scan and record the battery code to tracking testing results.


Detection system:
1. A set of micro-focus X-ray imaging system with free maintenance .
2. Save detection images in time.
3. Convenient observation with large images display window.

X-ray Tube

Tube Voltage

MAX 90KV

Tube Current

MAX 89uA

Focal Spot Size

5μm

Cooling Mode

Strong wind cooling

Image-forming  System

Field of View Range

2"/4"

Resolution

75/110 lp/cm

Camera Resolution

752*480pixels

Detection Precision

Repeat accuracy

60μm

Efficiency

Detection Efficiency

≥30ppm

False Rate

≤2%

Missing Rate

0.0%

Qualified Rate

≥99.5%

Safety Standard

International Radiation Safety Standards

≤1usv/hr
