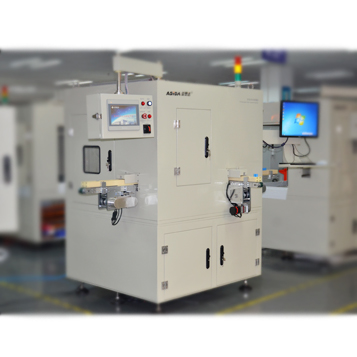

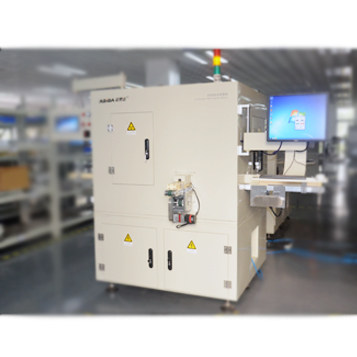

Online Automatic X Ray Inspection Machine for 18650 Battery XG5600 / XG5610A
  • Usage
  • Features
  • Parameters
  • Video

The equipment is mainly used to detect of 18650 lithium battery.

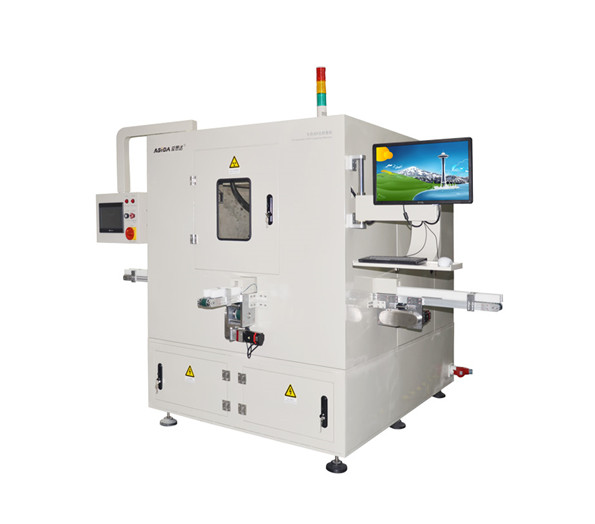

Online Automatic X Ray Inspection Machine for 18650 Battery XG5600 / XG5610A sample :


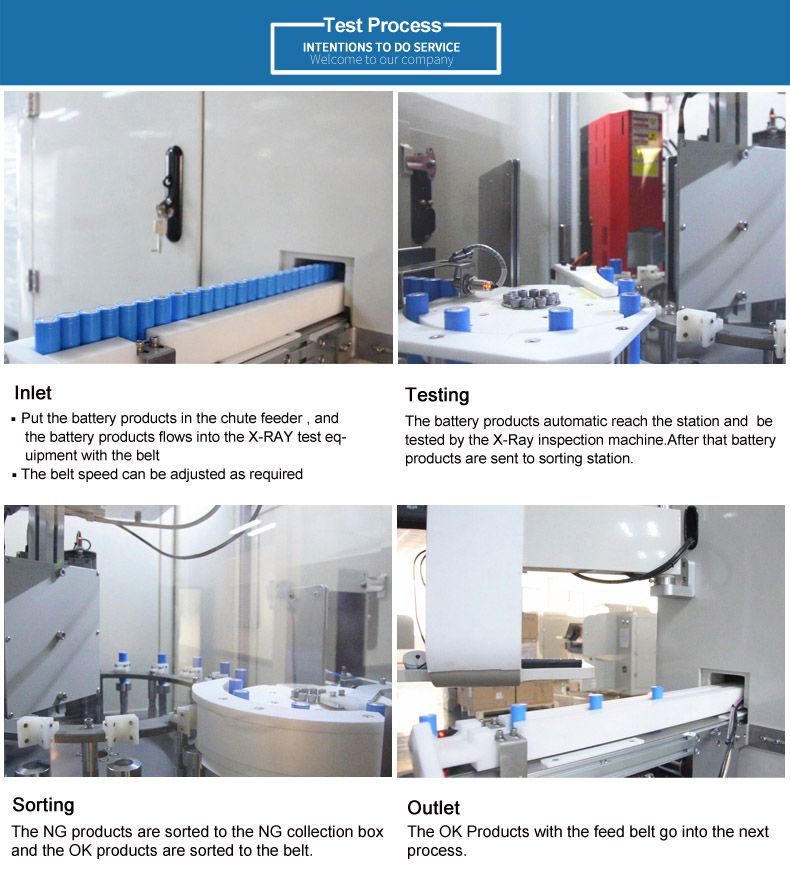

Automatic sorting

Automatic detection and sorting OK/NG products.


Real-time monitoring.

Real-time monitoring the state of all actions, signal, hardware,and show on the software interface.

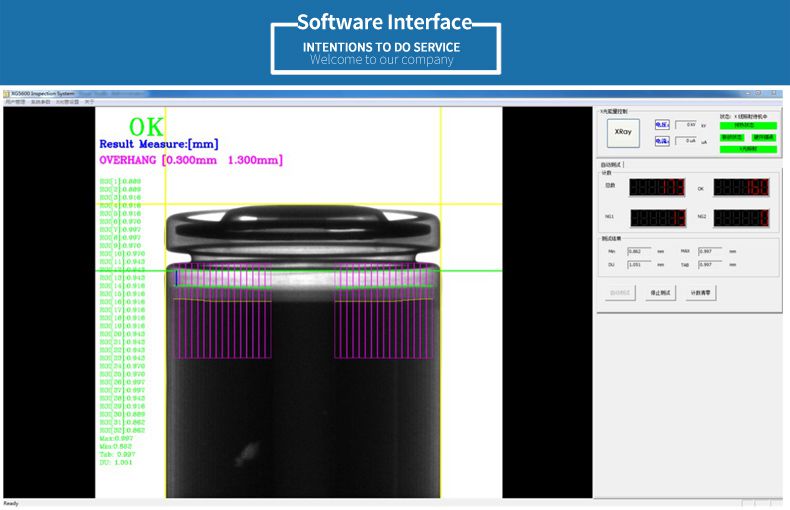

Images and data real-time online display

Test data and images of many parts of the same battery is shown in the same software interface, convenient observation recognition.


Safety protection
The whole equipment safety interlock, triple protection function, any part of the fuselage surface radiation meet safety standards.

Specifications of X -ray Inspection Machine XG5600/XG5610

Item

Specifications

XG5600

XG5610

X-ray Tube

Tube Voltage

MAX 90 -110 KV

MAX 110KV

Tube Current

MAX 89-455uA

MAX 455uA

Focal Spot Size

5μm

5μm

Cooling Mode

Strong wind cooling

Strong wind cooling

Image-forming  System

Effective detection area

54mm×48mm

20mm

Analysis

20.8 lp/mm

75/110 lp/cm

Resolution

1000*1124 pixels

2 million pixels

Detection Precision

Repeat accuracy

60μm

60μm

Efficiency

Detection speed

 ≥60ppm

60ppm

False Rate

 ≤2%

 ≤2%

Missing Rate

0.0%

0.0%

Qualified Rate

 ≥99.5%

 ≥99.5%

Safety standard

International Radiation Safety Standards

≤1usv/hr

≤1usv/hr

Others Parameters

Computer

Display: 22’’ ;

Processor: I5;

Memory: 4G;

Hard device: 500G;

Display: 22’’ ;

Processor: I5;

Memory: 4G;

Hard device: 500G;

Dimension (L X W X H)

3800mm X 1600mmX1850mm

3000mm X 2500mmX1850mm

Power

AC 220 V / 50 HZ,about 2500W

AC 220 V / 50 HZ,about 2500W

Temperature & Humidity

25±3℃;

RH 50% ± 10%

25±3℃;

RH 50% ± 10%
