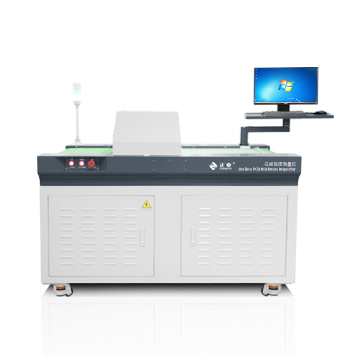

The online plate thickness inspection machine is applied to PCB/PCBA, automobile, machining and other industries. It adopts non-contact laser measurement. It can accurately measure the thickness of the pcb pressing board, plastics and films。

1. High quality: on-line detection can reduce the output of defective products, and non-contact laser measurement is adopted without destructive effect.

2. High efficiency: the measurement efficiency is 6-8s/PC.

3. Accurate data: the test accuracy is as high as ±5μm.

4. Thickness of test plate: 0-12mm, wide range of thickness of applicable plate.

ITEM	Online PCB thickness Inspector
Model	BH11
Measuring type	Non-contact measurement
Test point	1.self-selection 2.Software to determine
Plate thickness measurement range	0-12mm
Accuracy of the test	±5μm（Standard piece） 0-25μm(PCB board and micrometer measured, PCB warpage ＜0.8mm）
Test plate size range	250mm250mm—650mm620mm
Test efficiency	6-8S/pc
Test point positioning accuracy	±3mm
Sensor model	LK-corioli（keyence）
Sensor resolution	0.025μm
Sensor laser diameter	φ50μm
Platform speed	6M/min 12M/min
Data statistics	Yes
Collecting plate function	Optional
Working Environment Temperature	22±3℃
Power Requirement	AC220V 50HZ
Air supply	0.6-0.8Mpa
Power	2KW
Weight	500KG
Dimension	1536 mm * 1245 mm * 1420 mm (LWH )
