Warpage Checker QQ1000

Model : QQ1000



Place of Origin: China



Packaging Details: Wooden Carton

  • Usage
  • Features
  • Parameters
  • Video

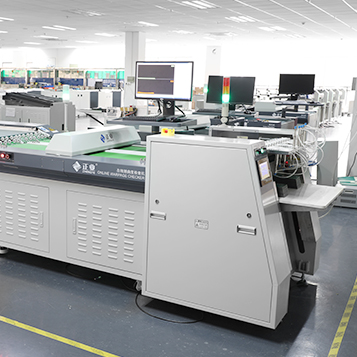

This machine is used for detecting plate bending and warping on PCB finished board or a copper clad plate, and automatically make OK, NG judgement according to the detection result.

A . Accurate

High precision CCD laser displacement sensor measurement of plate ending plate become warped values with high stability.



B . Intelligent and efficient

(1) Serial port RS232 data communication transmission technology, PLC high-speed data communication technology precision platform installation technology, real-time image data shows that the use of technology such as technology.



(2)The modular design, online detection speed can reach 12.5 m/min, but automatic identification of OK/NG and receiving, respectively.

ITEM

SPECIFICATION

Model

QQ1000

Inspection Accuracy

±0.15mm

Inspection Speed

6.5m/min , 12.5m/min

Objects

PCB Thickness

0.5mm5.0mm

Warpage

0.5mm3.0mm

Board Size

Min:40mm x 80mm Max:480mm x 500mm

Machine size

3510mm×1160mm×1050mmL×W×H

Weight

450kg
