ITEM

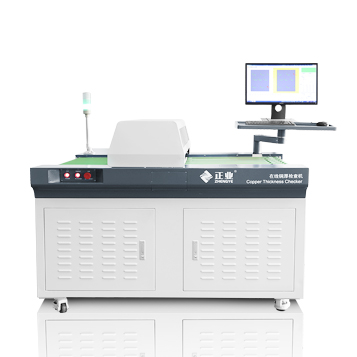

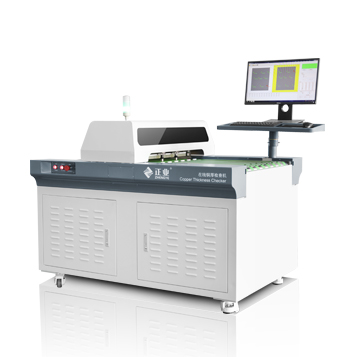

Online Copper Thickness Checker

Measuring Plate Area

200mm* 220mm to 650mm * 620mm

Test plate thickness

0.05mm - 12mm

Copper thickness test range

 0.1- 120μm

Copper thickness test area size

＞10mm*15mm

Testing Accuracy

±5%

Copper thickness test controller

FISHER（MMS PC2 BU）

Copper thickness test probe

FISHER（PROBE ERCU N）

Test efficiency

6 points:6-9 seconds/pc;

18 points :10-13seconds/pc;

Test point positioning accuracy

±3mm

Test point

1.input file(type Dir) and find the test points

2. input file(type Gerber) and find the test points

3.average of 5 test points or 9 test points which can be set by software.

Platform speed

6M/min;

12M/min

Data statistics

Yes

Collecting plate function

optional

Working Environment Temperature

22±3℃

Power Requirement

AC220V 50HZ

Air supply

0.6-0.8Mpa

Power

2KW

Weight

500KG

Dimension

1536mm*1245mm*1420mm
