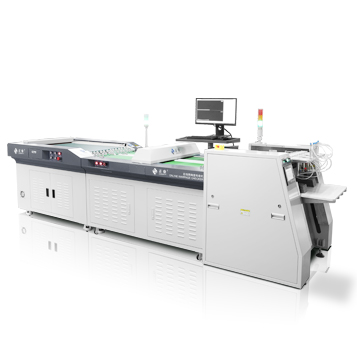

Hole Checker JK8000

Model : JK8000



Place of Origin: China



Packaging Details: Wooden Carton

  • Usage
  • Features
  • Parameters
  • Video

The machines are suitable for steps after PCB drilling and before PCB packaging,

detecting the number of holes, hole diameter and quality (such as plug hole, foreign bodies, trough long and short defects), and  make OK / NG judgment automatically.

A . Precise

 Adopting high-precision CIS scanning system, automatic positioning, image processing and detection technologies.



B. Efficient:

Equipped with double sorting equipment, which can detect two plates at the same time.



C . Characteristics

With network maintenance function, it can use several terminals  to view NG board defect information synchronously, and to overhaul the NG board rapidly.

ITEM

Online Hole Checker (Model JK8000)

Dimension

Length

Scanner 1550 mm

Width

1280 mm

Height

1520 mm

CIS

Contact image sensor

Light

Bar red LED light source

Maximum diameter ratio

25:1

Measurable thickness

(1)0.3 mm to 10.0 mm;

(2)PCB which thickness less than 0.3mm shall be

submitted for sample confirmation;

PCB size

Width:80〜650mm;

Length:100〜650mm;

Pore size range

Φ0.10mm〜Φ10mm



Min margin of punching hole



0.1mm

The maximum number of holes in the tested plate



800,000 (round hole) ;

Measuring speed

The four gears of the measured velocity scanning part were available):3.0±0.5m/min;6.5±0.6m/min;10±0.8m/min;12.5±0.8m/mi;Remark: The drill plate is up to 6.5m/min.

Repeat precision (round hole)

±30um

Repeat precision (non-circular

hole)

Slot: plus or minus 75um;

Irregular holes: 150um;

Aperture accuracy (round hole)

+/-20um(aperture≤1mm)

+/-30um(4mm>aperture>1mm)

+/-40um(aperture≥4mm)

Inspection line number

standard machine: single line, 2 lines;(above line 3, please separately inquire).

Computer

Electric brain industrial computer, CPU: i5 series;Memory: 8G;Hard disk: 1T;Operating system: windows7 X64.

Power source

 220V(1±10%)/50Hz.

Power

Power scanning and sorting device: 2KW;

No sorting device: 1.2kw
