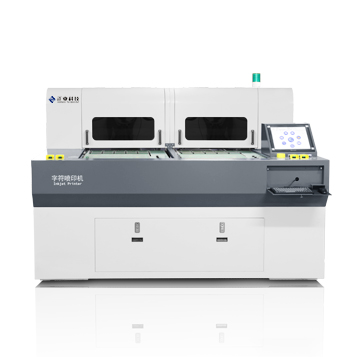

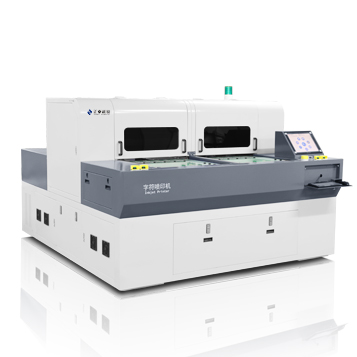

Legend Inkjet Printer PY600E

Model : PY600E



Place of Origin: China



Packaging Details: Wooden Carton

  • Usage
  • Features
  • Parameters
  • Video

The equipment is used in processing of character printing on PCB/ FPC, which replaced of the traditional screen printing to provide a high-precision, high-quality and efficient characters production solutions for PCB manufacturers.

A. High precision:

Adopt special precision linear motion guide modules, servo control, multi- points positioning and compensation technology;



B . High-quality:

high definition printing characters; strong adhesion;



C . High efficiency:

Using high-performance LED-UV ink curing systems, the curing time is short; bi-directional print technology allows a substantial increase in production efficiency; linear motor technology ensures accurate bidirectional printing, making it a practical solution.



D. User-friendly:

The double printing platform options for different print media,and is well prepared for the coming new ink printing  technology.



E. Customized

The hardware and software are self - developed in order to master core technologies and customize personalized solutions for customers

Specification of Legend Inkjet Printer

Model

PY600E

Accuracy

Positioning Accuracy: ±38μm

Repeat Accuracy: ±5μm

Quality

Resolution: 720/1080/1440dpi

Minimum Line Width: 75μm ~ 100μm

Minimum Character Height: 0.5mm

Speed

If PCBs size 720mm x  620mm(28’’ x 24’’) :

(a)Two-way quickly mode twice : 15 seconds per side;

(b)Two-way production mode for 3 times :20 seconds per side;

Note:

1) The printing speed calculation include loading and unloading time;

2) The number of print-header:1024i*5.

Objects

Circuit board size: 720mm x 620mm28"×24"

Circuit board thickness: 0.16mm4236 mil

Dimensions (L×W×H)

2670mm x 2400mm x1790mm

Weight

4300Kg

Automatic loading and unloading

Solution A:

Automated assembly line solution with two robot arms, printing front and back sides at the same time.

Solution B:

Solution One: Robot Arm TypeCan Automatic Turning Plate
