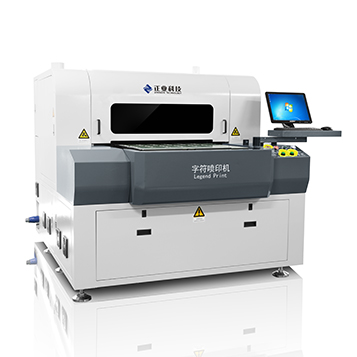

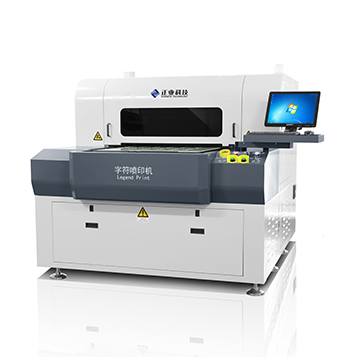

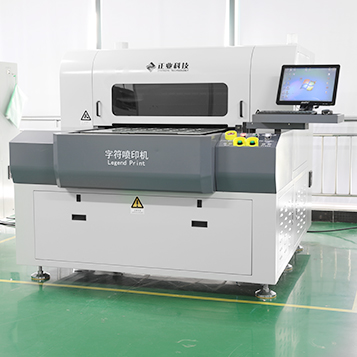

Legend Inkjet Printer PY300D

Model : PY300D



Place of Origin: China



Packaging Details: Wooden Carton

  • Usage
  • Features
  • Parameters
  • Video

The equipment is used in processing of character printing on PCB/ FPC/IC/LED, which replaced of the traditional screen printing to provide a high-precision, high-quality and efficient characters production solutions for PCB manufacturers.



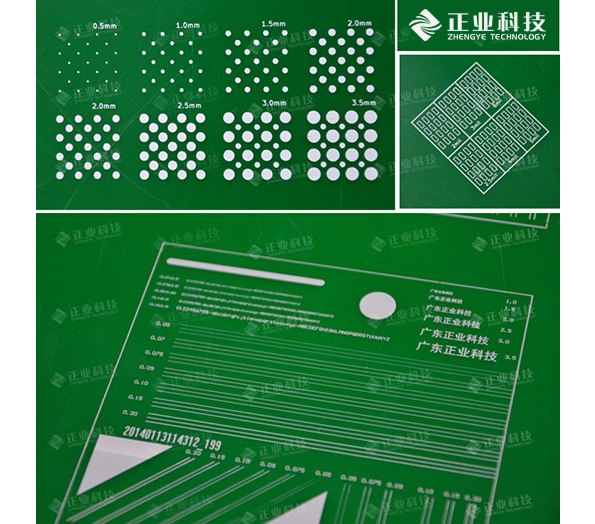

A. High precision:

Adopt special precision linear motion guide modules, servo control, multi- points positioning and compensation technology;



B . High-quality:

high definition printing characters; strong adhesion;



C . High efficiency:

Using high-performance LED-UV ink curing systems, the curing time is short; bi-directional print technology allows a substantial increase in production efficiency; linear motor technology ensures accurate bidirectional printing, making it a practical solution.



D. User-friendly:

The double printing platform options for different print media,and is well prepared for the coming new ink printing  technology.



E. Customized

The hardware and software are self - developed in order to master core technologies and customize personalized solutions for customers

Specification of Legend Inkjet Printer

Model

PY300D

Accuracy

Positioning Accuracy: ±38μm

Repeat Accuracy: ±5μm

Quality

Resolution: 720dpi x360dpi ~1440dpi x1440dpi

Minimum Line Width: 75μm ~ 100μm

Minimum Character Height: 0.5mm

Speed

If PCBs size 610mm x  560mm(24’’ x 22’’) :

(a)Two-way quickly mode twice : 150 sides per hour

(b)Two-way production mode for 3 times :120 sides per hour

Note:

1) The printing speed calculation does not include loading and unloading time;

2) The number of print-header:1024i*4.

Objects

Circuit board size: 730mm x 621mm(28"×24")

Circuit board thickness: 0.1~6mm(4~236 mil)

Dimensions (L×W×H)

2050mm x 1650mm x1650mm(not including computer)

Weight

1450Kg

Automatic loading and unloading

Solution One: Robot Arm Type(Can Automatic Turning Plate)

Solution Two: Stacker Type(Can’t Automatic Turning Plate)
