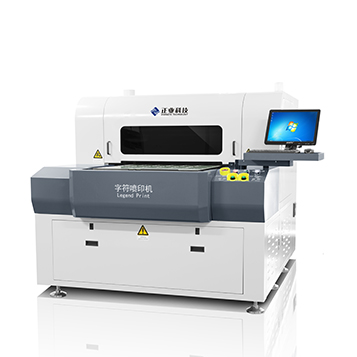

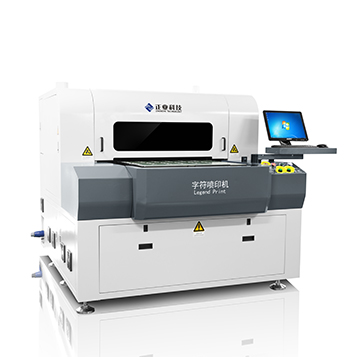

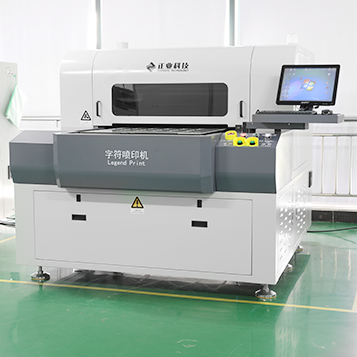

Legend Inkjet Printing Machine（PY300B）

Product name Legend Inkjet Printer
Brand Name: ASIDA
Model Number: PY300B
Place of Origin: China
Packaging Details: Wooden Carton

Facebook
Qzone
LinkedIn
Sina Weibo
Twitter
Tencent Weibo
Pinterest
WeChat
Google+

Usage
Features
Parameters
Video

The equipment is used in processing of character printing on PCB, which replaced of the traditional screen printing to provide a high-precision, high-quality and efficient characters production solutions for PCB manufacturers.

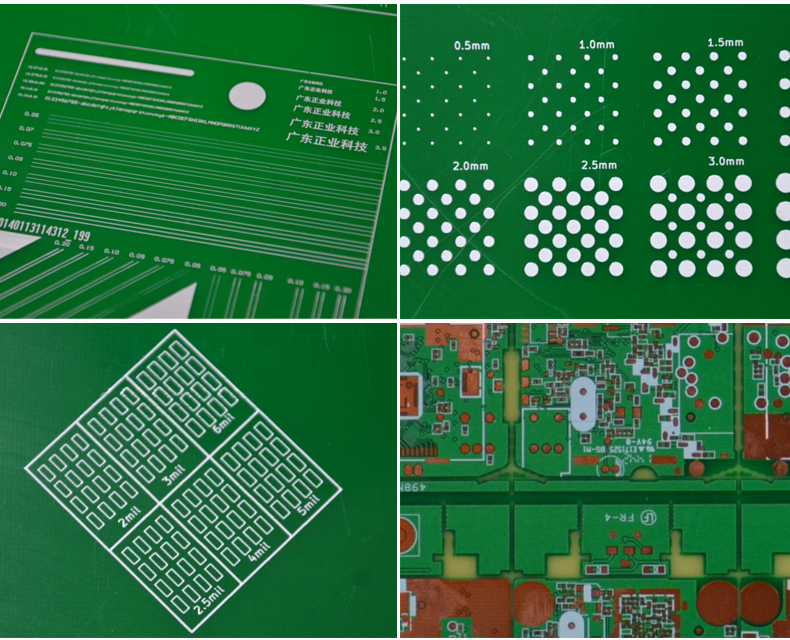

Printing Samples

1, High precision: Adopt special precision linear motion guide modules, servo control, multi- points positioning and compensation technology;

2, High-quality: high definition printing characters; strong adhesion;

3, High efficiency: Using high-performance LED-UV ink curing systems, the curing time is short; bi-directional print technology allows a substantial increase in production efficiency; linear motor technology ensures accurate bidirectional printing, making it a practical solution.

4, User-friendly: the double printing platform options for different print media,and is well prepared for the coming new ink printing technology.

Specification of Legend Inkjet Printer
Model	PY300B
Accuracy	Positioning Accuracy: ±35μm
Accuracy	Repeat Accuracy: ±5μm
Quality	Resolution: 720dpi x720dpi ～1440dpi x1440dpi
	Minimum Line Width: 75μm ~ 90μm
	Minimum Character Height: 0.5mm
Speed	If PCB’s size 420mm x 450mm : (a)Two-way quickly mode : 200 sides per hour (b)Two-way production mode: 130 side per hour (c)Two-way high-definition mode: 78 side per hour
Objects	Circuit board size: 650mm x 610mm（26"×24"）
Objects	Circuit board thickness: 0～6mm（0～236 mil）
Dimensions (L×W×H)	1680mm x 1940mm x1460mm（not including computer）
Weight	1350Kg
