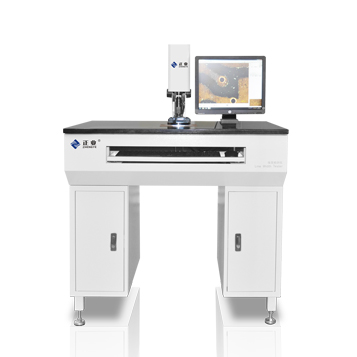

Line Width Tester XK25

Brand:ASIDA

Model:XK25

Facebook
Qzone
LinkedIn
Sina Weibo
Twitter
Tencent Weibo
Pinterest
WeChat
Google+

Usage
Features
Parameters
Video

Line Width Tester is suitable for measuring the widths of inner and outer range of semi PCB after etching(before solder masking). The distance between two lines, distance between holes and edge, diameters of round holes, blind holes and arcs can also be measured. In addition, measuring widths of IC wafer, thickness of films and LCD boards are available.

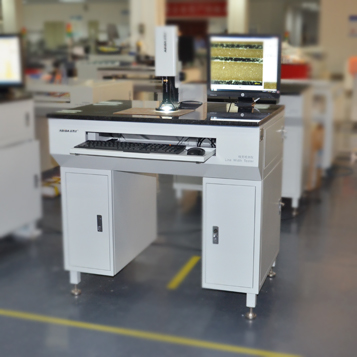

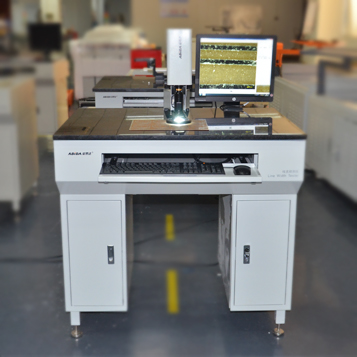

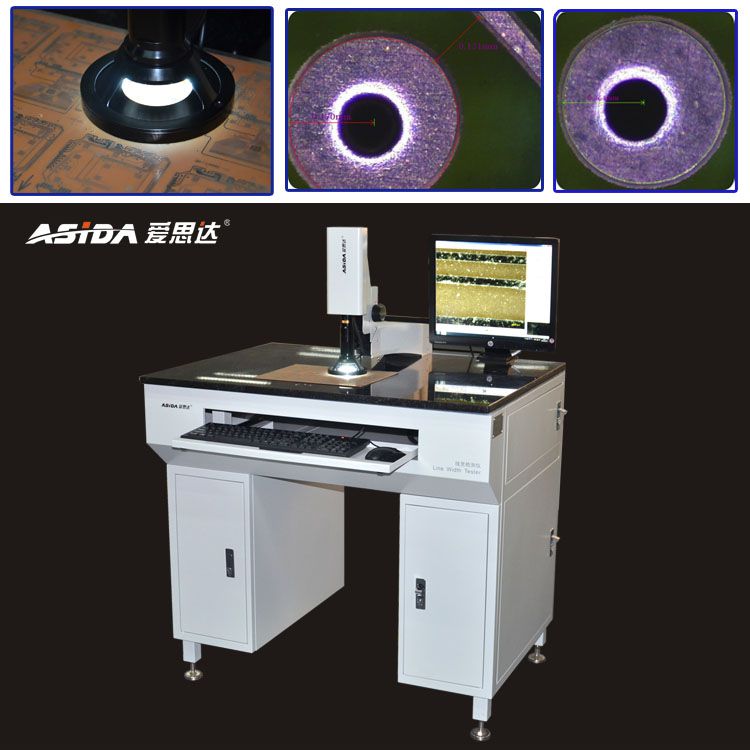

Line Width Tester XK25 sample :

Precise

Adopting high-precision focus distance adjustable device, image processing, automatic boundary and sub- pixel algorithms technologies.

Efficient

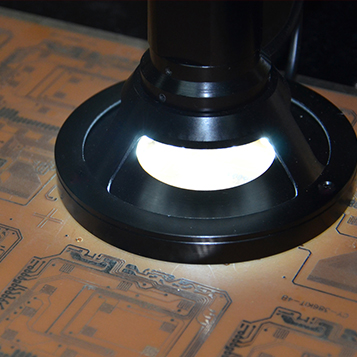

(a)Red LED positioning.

(b)Automatic boundary technology.

(c)Perfect function of SPC statistics.

ITEM		XK25(Desk type)
Accuracy	Measuring Accuracy	±1μm
	Resolution	0.4μm/pixel～2.7μm/pixel
	Total Magnification	70 ～450X
	Optics Magnification	1.4X ～9X Continuously Adjustable
Objects	PCB Width	≤760mm
	Field of View	0.53mm×0.4mm～3.3mm×2.5mm
	Line Width	20μm ～1200μm
Machine Size(without computer)		960mm×780mm×1280mm
Weight（without computer）		145kg
