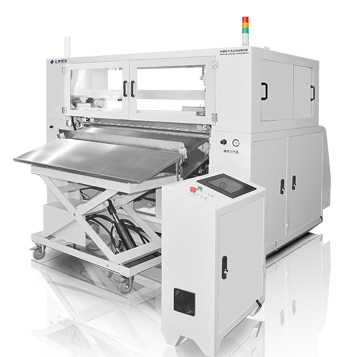

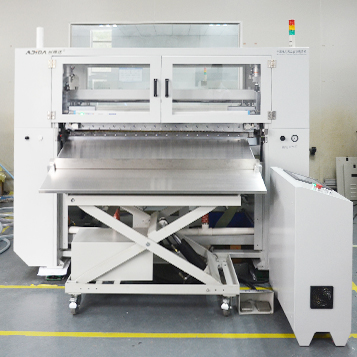

Dust-free Prepreg Cutting Machine CQ2000

Brand:ASIDA
Model:CQ2000

Facebook
Qzone
LinkedIn
Sina Weibo
Twitter
Tencent Weibo
Pinterest
WeChat
Google+

Usage
Features
Parameters
Video

The machine is used for cutting rolled prepreg, to solve the problem of prepreg spreading and large dust in cutting and after cutting.thus to improve the cutting accuracy and quality.

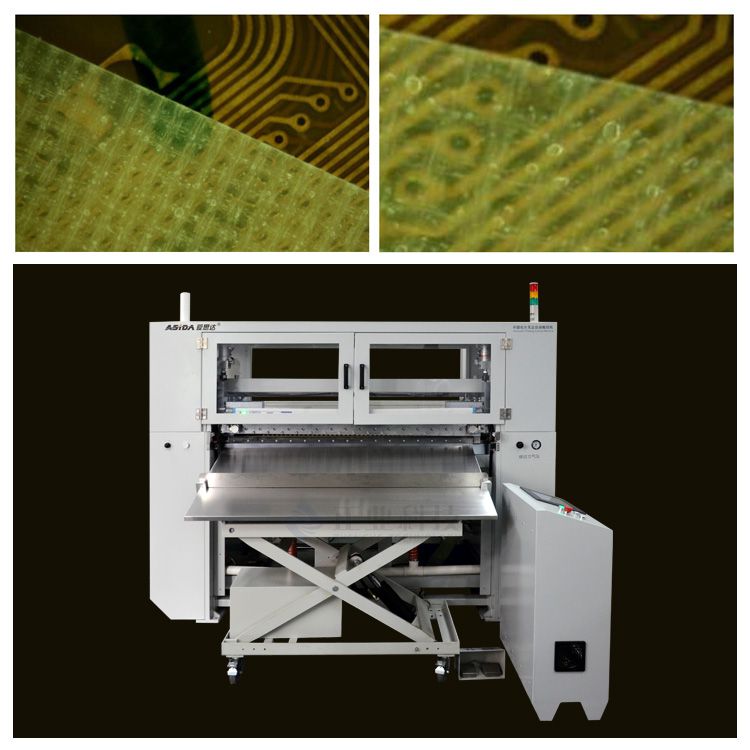

Dust-free Prepreg Cutting Machine CQ2000 sample :

Precise

Adopting high-precision drive mechanism and servo control system.

High Quality

Tidy cutting edge, automatic edge sealing, no wiredrawing and no obvious dust.

High Efficient

(a)The cutting efficiency of CQ2000 has been improved by dynamic heating of length cutting and cross-cutting at the same time.

(b)After cutting the material can be used directly, no need of edge sealing and vacuuming.

(c)PP can stack automatically.

(d)Parameters can be packed up and brought up directly.

Specifications of Prepregs Cutting Machine
Model		CQ2000
Cutting Accuracy		±1mm
Quality	Compared with the traditional purely mechanical cutting	Tidy cutting edge, no white edges & layered & wrinkled and charred carbonation;
Quality	Compared with the traditional purely mechanical cutting	more than 95% dust reduced
Efficiency	Cutting Frequency (take 500mm length as calculation)	≤23times/min
Objects	Cutting Length	250mm～750mm
	Cutting Width	200mm～1270mm
	Cutting Thickness	0.02mm～0.3mm
(L×W×H)		2500mm x 2200mm x1658mm
Weight		1800kg
