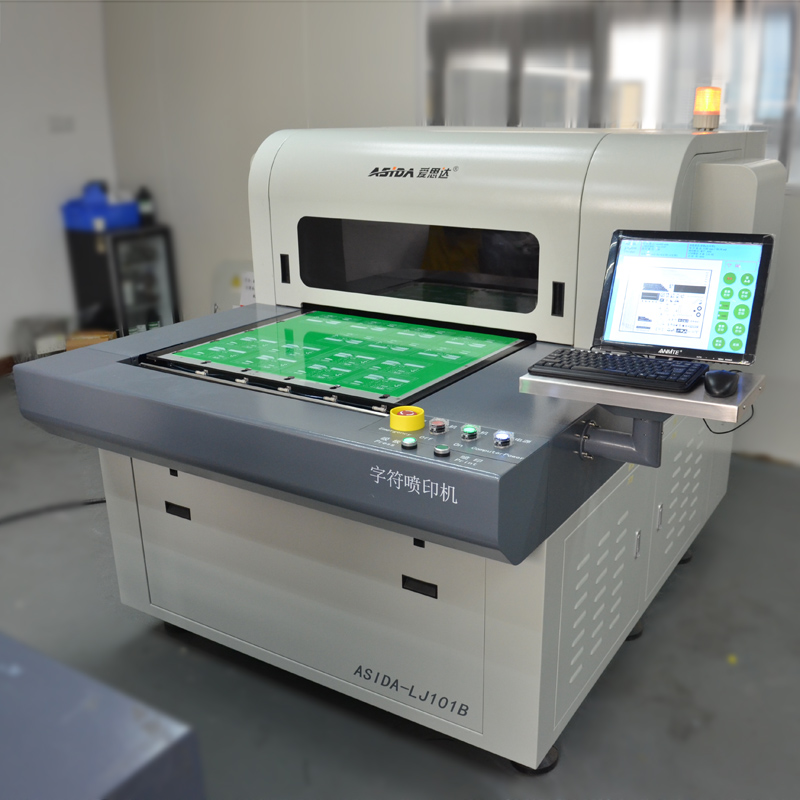

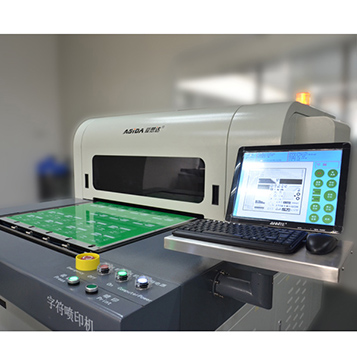

Legend Inkjet Printer LJ101B

Brand : ASIDA

Model : LJ101B

Facebook
Qzone
LinkedIn
Sina Weibo
Twitter
Tencent Weibo
Pinterest
WeChat
Google+

Usage
Features
Parameters
Video

The equipment is used in processing of character printing on PCB, which replaced of the traditional screen printing to provide a high-precision, high-quality and efficient characters production solutions for PCB manufacturers.

SAMPLES

High precision

Adopt special precision linear motion guide modules, servo control, multi- points positioning and compensation technology;

High quality

High definition printing characters; strong adhesion.

High efficiency

Using high-performance LED-UV ink curing systems, the curing time is short; bi-directional print technology allows a substantial increase in production efficiency; linear motor technology ensures accurate bidirectional printing, making it a practical solution.

User friendly

The double printing platform options for different print media,and is well prepared for the coming new ink printing technology.

Specification of Legend Inkjet Printer
Model	LJ101B
Accuracy	Positioning Accuracy: ±35μm
Accuracy	Repeat Accuracy: ±5μm
Quality	Resolution: 720dpi x720dpi ～1440dpi x1440dpi
	Minimum Line Width: 75μm ~ 90μm
	Minimum Character Height: 0.5mm
Speed	If PCB’s size 350mm x 450mm : (a)Two-way quickly mode:120 side per hour (b)Two-way production mode: 78 side per hour (c)Two-way high-definition mode: 47 side per hour
Objects	Circuit board size: 610mm x 600mm（24"×23"）
Objects	Circuit board thickness: 0～6mm（20～236 mil）
Dimensions (L×W×H)	1680mm x 1940mm x1460mm（not including computer）
Weight	1350Kg
