How to Efficiently and Accurately Detect the Drilling Quality of PCB Boards?

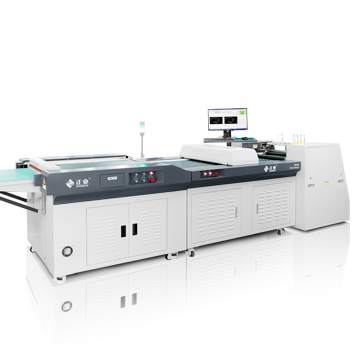

How to accurately and accurately test the drilling quality of PCB board to ensure product quality? How to reduce labor costs? The PCB factory urgently needs a high-efficiency and high-precision automatic inspection equipment to improve quality and efficiency, and the Hole Checker machine came into being. The hole inspection machine is an optical automatic inspection device that collects the PCB hole image and compares it with the design file (drill tape file or tape file). When the two are consistent, the hole is correct. Otherwise, there is a problem with the hole. Then, according to the image morphology, the types of defects are classified. The PCB Inspection is compared with the design document. The manual visual inspection is compared with the film. In the inspection principle, the problem caused by the film drilling error can be avoided, and the trustworthiness is higher.
(1) Saving labor cost: Under the premise of ensuring quality and improving efficiency, one inspection machine can save 2~3 quality inspection personnel on average;
(2) Raw materials: It can save the material cost of film, and it is more meaningful for small and medium-sized batch plants;(3) Customer complaints: It can save the cost of returning the bill and the penalty caused by the drilling defects. Although it can not be directly calculated like the saved personnel and materials, the annual average cost saving is even higher than the purchasing cost of the hole punching machine;
(4) Reduce the waste of scrap and waste materials.
