Zhengye Technology Introduced Line Width Measuring Instrument To Improve Circuit Board Performance And Quality

Zhengye technology introduced China PCB Line Width Tester instrument to improve circuit board performance and quality.

[1] The background

Circuit board, as an indispensable component of electronic products, is moving towards miniaturization, integration, densification and diversification, which leads to the increasing influence of the characteristic impedance of wires on the circuit board on the performance of circuit boards. The main factors influencing the characteristic impedance are wire width, thickness, spacing and rough edge of wires.

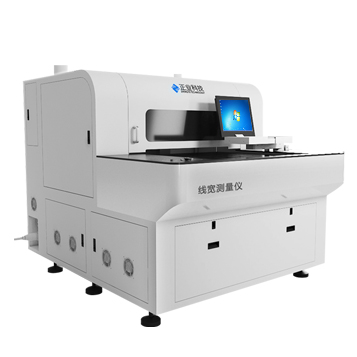

[2] Main line width measuring instrument series

Main line width gauge is mainly used to detect and analyze the quality of the upper and lower width, line spacing and round hole (in the field of camera field) of the semi-finished circuit in printed circuit board and outer layer after developing and etching (before the green oil).

[3] Equipment features:

1. Automatic positioning measurement: it supports the client to import GBR data. Users can customize the measurement position information according to the GBR file, generate the automatic measurement program, and then import the software for automatic measurement.

2. Automatic focus: during automatic operation and measurement, the imaging system will automatically focus to ensure that the measurement position is clear and accurate;

3. Automatic switching ratio: automatic lens doubling is adopted without manual switching;

4. Navigation positioning: it has the function of navigation image positioning;

5. Automatic edge searching: automatic line catching, upper and lower width, line distance, circle diameter, etc.;

6. Data statistics function: EXCEL data archive and statistics function and automatic data export.
