[ Solution For Intelligent Manufacturing ] PCB QR Code Traceability Management In Business Solves PCB Industry Traceability Problems
As an entrance to the internet of things era, QR code is also changing the way enterprises communicate with the world. How to make good use of the technology of QR code tracing to trace PCB products and realize the association between data and system has become a hot issue concerned by PCB factories.
The professional PCB QR code tracing solution is to assign a unique QR code to each PCB board, cooperate with code scanning equipment to realize the association between each board and the system, and cooperate with the information of human, machine, material, method, ring, quality data and potion analysis data and the system to realize the relevant information tracing of products from the supply end to the client.
Through the application of QR code traceability scheme, it can provide advantages and basis for big data cloud computing to optimize the effective and reasonable allocation of enterprise resources, build a PCB QR code traceability platform, realize integrated system management, and enhance customers' confidence in product traceability assurance.
QR code tracing scheme for Zhengye Science and Technology PCB;
01
Difficulty solving
1. The problem of data interaction has been solved: the processes of coating ink on the inner layer, depositing copper and electroplating, dry film, solder resist ink and the like affect the identification of the QR code.
2. The problem of code assignment was solved: when information was transferred from the inner-layer QR code to the outer-layer QR code, the inner-layer information was lost due to the problem that the inner-layer QR code could not be seen after the pressing process.
02
Equipment advantage

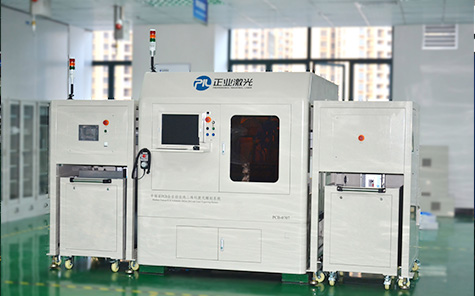

1. Information carrier: QR code and hole array code ( business patent );
2. Hole array code identification equipment: software and hardware integration ( QR code marking equipment, X-ray detection equipment ) designed and manufactured by Zhengye Science and Technology;
3. QR code identification equipment: currently technically mature QR code scanner on the market.
03
Program advantages
1. The QR code marking machine can be customized to ensure the online and diversity of equipment and meet different needs.
2. X- Ray testing equipment can be customized. Zhengye Science and Technology has a high market share in the high-end X-ray market, especially in the lithium battery industry.
3. It has its own MES system and QR code tracing system, and can open source to realize the subsequent secondary development of customers.
4. It has its own software research and development center, and all functional software is independently developed by Zhengye Science and Technology.
Zhengye Science and Technology uses the combination of QR code and hole array code to realize a 100 % identification of QR code full-process tracing scheme, which solves the difficulties of PCB factory product data association, forward / backward tracing, code assignment and data interaction. The scheme is independently developed by Zhengye Science And Technology from software to hardware, and can provide customized services to meet the different needs of customers. It is the key for PCB factory to realize intelligent manufacturing transformation and upgrading.
