Automatic PCB hole inspection machine is a good choice for you!

    Intelligent filled with every corner of social life, whether it is " German Industry 4.0" or " Made in China 2025" are clear about the enterprise intelligent production, economic structure transformation and upgrading, occupy the industrial products manufacturing market initiative.

    Zhengye Technology is a tireless practitioner in the field of intelligent manufacturing. The company has been in the field of PCB manufacturing Since 1997, and has accumulated rich industry experience.  Zhengye know the challenges of transformation and upgrading of PCB production plants from traditional production to intelligent manufacturing. And understand the important of improving the production efficiency and reduce production costs in the process of intelligent PCB production plants.

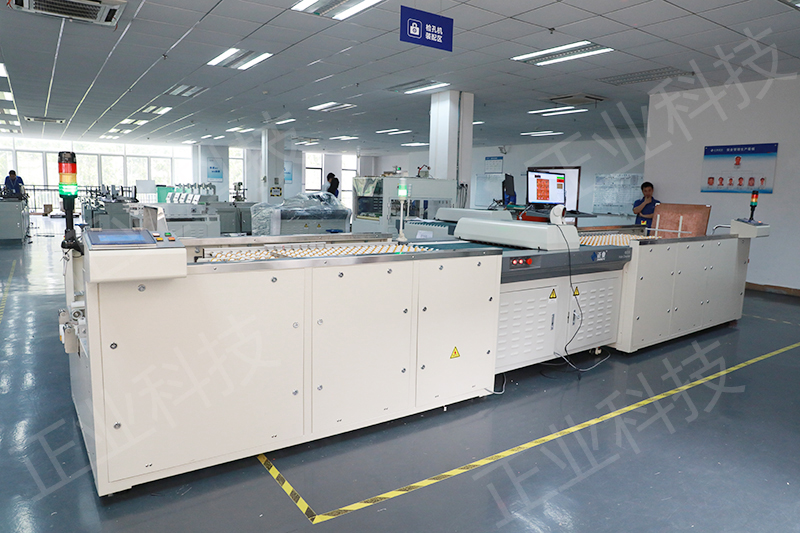

▲ Hole Checker (Automatic PCB hole inspection machine) from Zhengye Technology

The main operation flow chart of the new PCB hole inspection machine is as follows:

Load PCB ---> Manually Input P/N into computer ---> Inspection holes ---> Check the test results ---> Manually sorting OK / NG circuit board ---> Collection circuit boards
    In this traditional process,workers have to be trained long time because the operation is complex,such as computer’s input , result check , products’ sorting. Once there is any misoperation, all circuit boards in this batch have to be inspected again, which affects production efficiency seriously.More over , increase labor cost because the hole inspection station of PCB workshop need more workers.

    In order to improve traditional PCB inspection ,Zhengye Technology independently researches and develops and produces a new type of automatic PCB holes inspection machine.The machine( Model JK5200) is with intelligent and efficient features, such as can adapted to circuit board automatic production line, automatically load circuit board, automatically inspection, automatically sorting OK and NG bare circuit board.

    The traditional PCB holes quantity inspection procedure as following:

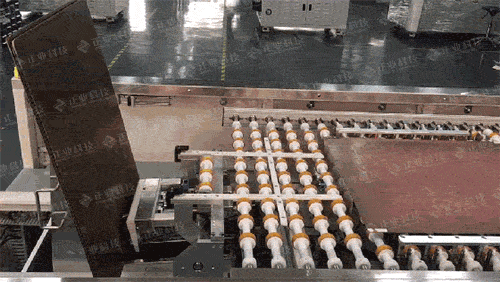

▲ Step1 :  Automatic load PCB

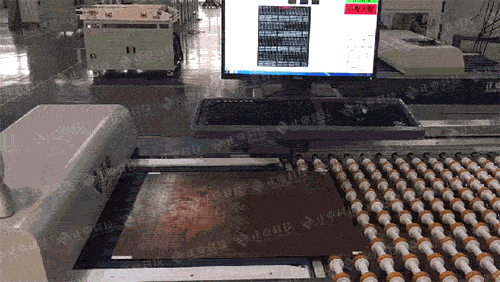

▲ Step 2 : Automatic read QR code which contains circuit holes test standard.

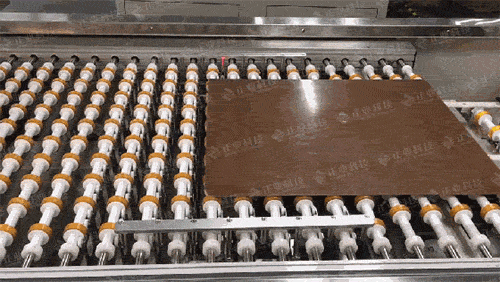

▲Step3 : After holes test, printed circuit board was positioned by fixture.

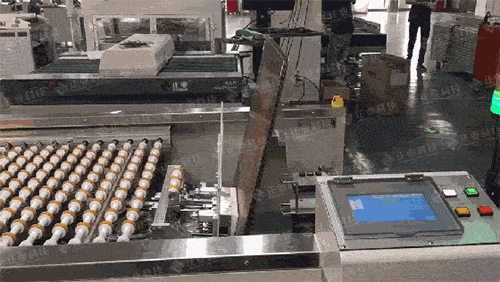

 ▲Step4: After position, NG/OK circuit boards are sorted to different trolley in left and right.

    Until now the automatic PCB hole inspection machine has been sold to many PCB manufactures include India Circuit Limited,TTM,Hitachi,OPC, AT&S, Meiko, Foxconn,Sun&Lynn,Topcb, Fastprint,SCC,AKM, CMK, Apex, APCB, GUH, Fuba, Elec&Eltek,Kinwong,Suntak, etc.  And receive customers good feedbacks.

    December 2016, Zhengye Technology hole inspection machine has been awarded the Guangdong provincial high - tech product certificate issued by the Guangdong provincial association of high - tech enterprises:

    In the future, Zhengye Technology will focus on improving products quality and performance. To bring the best service experience and create maximum value to more PCB fabrication.
