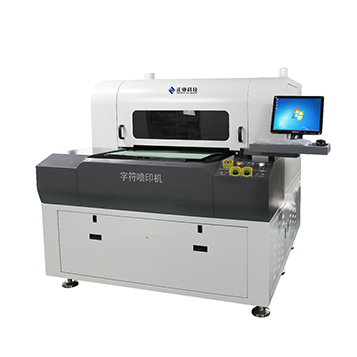

PCB Legend Inkjet Printer
PCB legend inkjet printing machine is based on the principle of additive method. According to the gerber data produced by CAM, it is accurately positioned by the CCD, and then the specific character ink is printed on the circuit board and cured instantly by the UV lamp to complete the PCB text.
Advantage:
1, save costs
● No need for screen printing, shorten the process
● Ink recycling, no loss
● Instant curing, continuous printing A-A/A-B surface, baking together with solder resist ink, saving character long-time baking process;
● LED curing light source, long life, energy saving and environmental protection, without frequent replacement and maintenance
● Highly automated, low dependence on operator skills
2, efficient and convenient
● CAM automatically converts printing graphics files, no screen version, rapid change of item number, easy to add identification code
● Vacuum adsorption clamp, while increasing the side pressure, top pressure, suitable for soft and hard plates, plates with different thickness and warpage
● Optional board edge and PIN positioning, fast loading and unloading board
● One-touch operation, automatic positioning, printing, curing, simple and convenient to get started quickly
3, automatic positioning and correction capabilities
● CCD automatic identification of positioning points
● Face-to-face positioning, automatic correction of board contraction
4, optimize the quality
● Finer and more uniform graphics
● Better cross-line quality
