Technical Parameters of Metallurgical Microscope

Optical System: ICCS Optical System, Mirror Body: FEM Design, ACR Position Code

1, The physical multiples: 5X 10X 20X 50X 100X optional 1.25X, 2.5X, 150X

2, Eyepiece magnification: 10X

3, The number of fields: 20,22

4, The objective turntable: 5 holes

5, Observe the function: bright field, dark field, simple polarized light, differential interference

6, Light source: 12V 50W halogen lamp

7, Scalability: with image analysis system (digital camera, camera, image analysis software

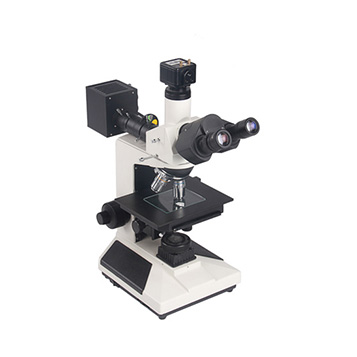

Metallographic Microscope JX22/JX23

System composition of Metallurgical microscope

Computer-based optical microscope: 1, the microscope 2, the adapter mirror 3, the camera (CCD) 4, A / D (image acquisition) 5, the computer.

Digital camera type metallographic microscope: 1, metallographic microscope 2, adapter mirror 3, digital camera.
