Advantages of Our Line Width Tester

Line width tester is also called Line Width Measuring System/Line Width Measurement System. We would like to introduce the advantages of our line width tester.

■ Hardware advantages

1. Smooth, flat granite bench for easy sample movement without scratches.

2. Imported high sensitivity, high-resolution color camera, shooting sensitivity, image quality clear.

3. Imported low distortion, large depth of field, high magnification coaxial optical lens to meet the test vision requirements.

4. At the same time equipped with a ring light source, coaxial light source and positioning light source, to meet a variety of measurement requirements.

5. High-precision, high-sensitivity mechanical focusing device, can accurately and clearly determine the measurement element.

6. Equipped with calibrator, you can calibrate the instrument accuracy at any time, without correction at a fixed magnification.

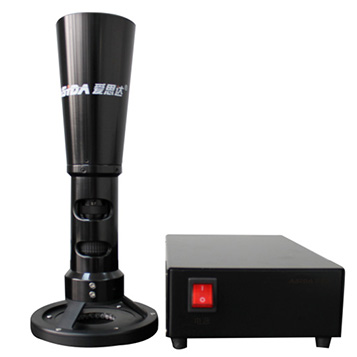

Line Width Tester

■ Software advantages

1. All measurement control mouse can be quickly completed, easy to learn.

2. A variety of measurement units are free to switch between real-time expression.

3. Picture can be up and down, left and right flip, the product can be placed without specifying the angle measurement.

4. Can set the standard value and upper and lower tolerance values, beyond the scope of special tips.

5. Test results can be imported / exported at any time, and can output doc, xls, jpg and other formats.

6. Output report formatting, according to user requirements for the preparation of the output data report format.

7. With administrator / operator login mode, multi-level permission management system.

8. Test software can be modified according to user requirements.

Welcome to choose us if you have any questions about Line Width Tester/ Line Width Measuring System/Line Width Measurement System.
