Introduction of Laser Drilling Machine

Laser drilling machine is the earliest practical laser processing technology. Laser drilling machine is mainly used in printed circuit board inner and inner layers, the outer layer and the inner connection.Then using high-precision laser punch copper plate and the inner layer of resin. At last through copper to complete the line connection.

Prominent advantages of laser drilling machine

(1) High efficiency drilling, good economic returns.

(2) A large aspect ratio can be obtained.

(3) Suitable for hard, brittle, soft and other materials.

(4) No tool wear and tear.

(5) Suitable for a large number of high-density group hole processing.

(6) Small holes can be machined on sloped surfaces that are difficult to machine.

Laser drilling process

The first step, learn more about drilling materials and drilling requirements.

The second step, simulation experiments and testing.

The third step, design convenient and fast fixture.

The fourth step, programming.

The fifth step, the implementation of effective drilling and the necessary testing.

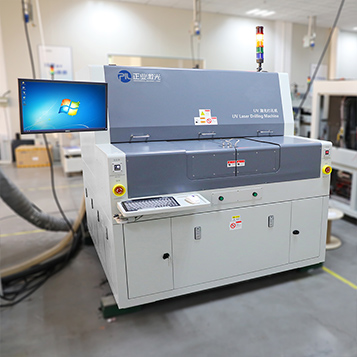

Recommended product: UV Laser Drilling Machine JG23

UV Laser Drilling Machine JG23
