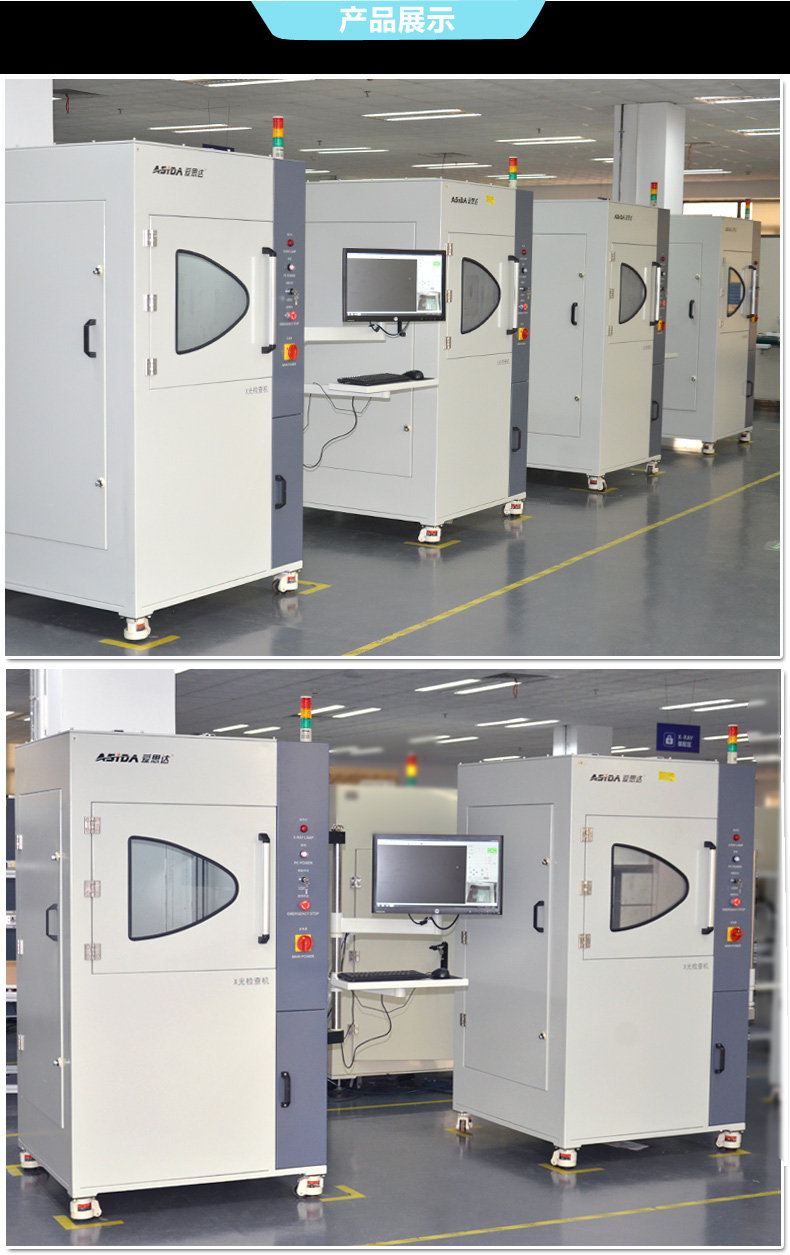

The Basic Structure of Industrial X-RAY Nondestructive Testing Equipment
The general function of industrial X-RAY non-destructive testing equipment is similar, he basic structure is usually similar, we talk about the basic composition of industrial X-RAY nondestructive testing equipment.
1.Software and computer control system: The software control is the soul of the X-ray ray detector.
2.X-ray tube: the core component is X-ray tube. This X-ray tube mainly produces X-rays, it can be used to observe the inside of the specimen through the workpiece.
3.Mechanical architecture: the structure is the main part to support industrial X-RAY nondestructive testing equipment. This part determines the industrial X-RAY nondestructive testing equipment use convenience and measurement trip.
4.Image receiving device: The image receiving device can capture defects such as BGA solder joints, blemishes, and cracks in the casting. The X-ray ray detector produced by Zhengye Technology Co., Ltd. has a relatively clear image effect.
