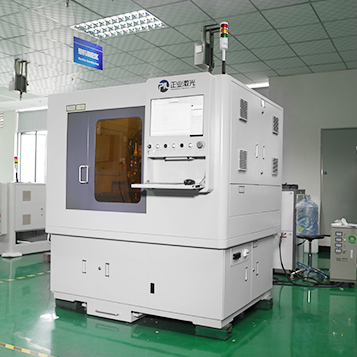

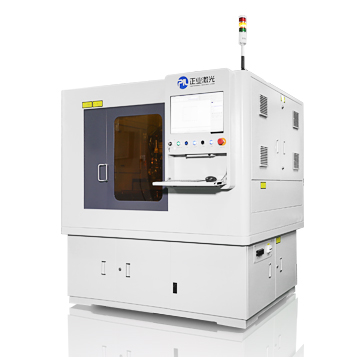

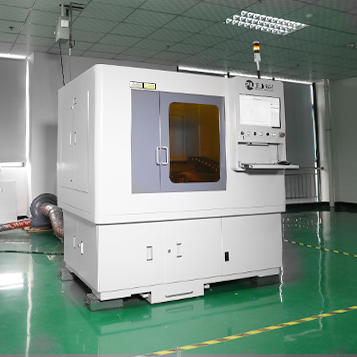

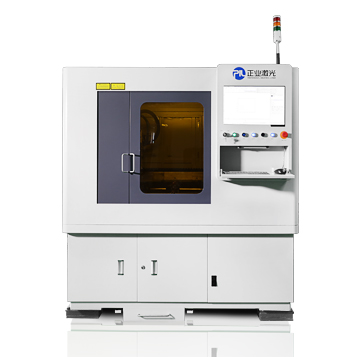

High Speed Fiber Laser Cutting Machine PIL0706-1000F

Model : PIL0706-1000F



Place of Origin: China



Packaging Details: Wooden Carton

  • Usage
  • Features
  • Parameters
  • Video

This equipment adopts imported/domestic fiber lasers, natural granite bases,large-format worktables, which can efficiently cut metal plates such as aluminum alloy,stainless steel, carbon steel, alloy steel, silicon steel, etc. With high processing efficiency, excellent quality, and high precision, the performance of this machine is much higher than similar products on the market.







APPLICATION



The equipment is mainly used in the PCB industry, precision metal processing, 3C electronic products and other industries. The products that can be cut include aluminum substrates and copper substrates, etc.


Specifications of High Speed Fiber Laser Cutting Machine

Model

PIL0706-750F

PIL0706-1000F

PIL0706-2000F

PIL0706-3000F

Laser

Imported/domestic Fiber Laser

Laser power

750W

1000W

2000W

3000W

Maximum Processing Size

650mm×550mm

Worktable Maximum Operating Speed

500mm/s

Repetitive Positioning Accuracy of Table

±0.005mm

Total Processing Accuracy

±0.08mm

Electric Power Supply

Three-phase Five-wire System,AC380V 50Hz/3.5kW

(Draught fan, water chiller not included)

Dimensions(L x W x H)

1450mm×1700mm×1850mm

Weight

1300kg

Control System

Imported NC System

Optional Function

CCD automatic positioning

CCD resolution

15μm
