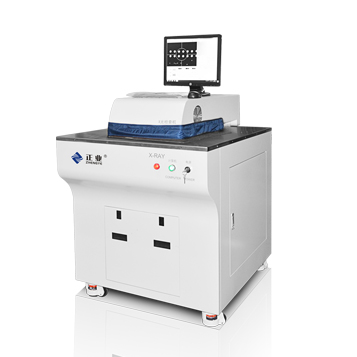

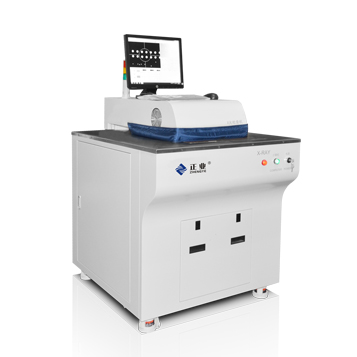

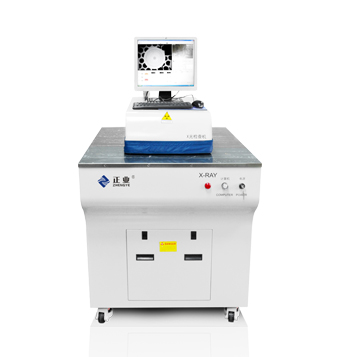

X-ray Inspection Machine XG3300A
Brand : ASIDA
Model : XG330A
  • Usage
  • Features
  • Parameters
  • Video

The instrument is used in detecting and measuring positioning holes on the PCB to check deviation between layers


X-ray Inspection Machine XG3300A sample :


Precision

(a) Adopting sealed micro focus X-ray tube and high-quality imaging system.

(b)Take a variety of image processing and measuring techniques.



Efficient

Real-time observation, directly visual observe inspect target through the lead glass, red light positioning.



Safety

Taking Triple protection technology (sealed micro focus X-ray tube, semi-enclosed lead protective structure and double-lead rubber protective curtain).





STANDARD-COMPLIANT



1.JB/T5054, JB/T5055-2001 mechanical design Standard;



2.EN13861-2002 ergonomic requirements;



3.GB18871-2002 Ionizing Radiation Protection and safety of radiation sources basic standards;



4.GB19517-2004 electrical safety requirements;



5.IPC-A-600G board Acceptable quality specifications requirements.

Specifications of X Ray Inspection Machine



Model

XG3000A

Accuracy

Measuring accuracy

30 μm

Resolution

17-25 lp/mm

Observation target exactly

Efficiency

153 PCS/min

Object

≤22 layers of PCB

Copper foil thickness

1/3 ~ 20 oz

Radiation leak

≤0.5 μ SV/h

Dimensions

1040 mm *855 mm*1510 mm(Including computer)

Weight

130Kg
