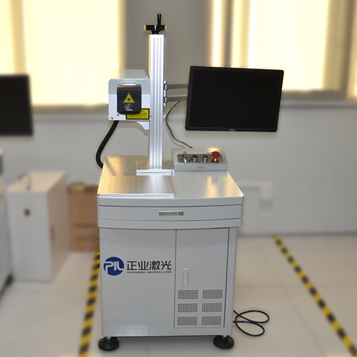

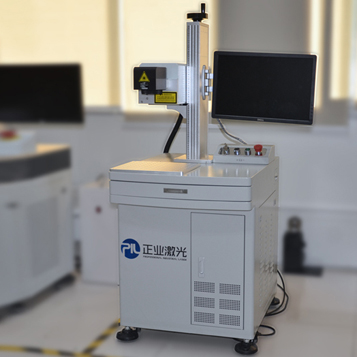

CO2 Laser Marking Series MC-10/30
Brand : PIL
Model : MC-15/25/30
  • Usage
  • Features
  • Parameters
  • Video

The machine employs the imported CO2 laser and imported high-speed galvanometer as its central devices. It is widely used for nonmetal’s surface marking, such as food and beverage packaging, plastic devices, PCB, electronic components, craftwork, burden distribution, leathers, buttons, papers, wood, organic glass and ceramic marking, etc.






1. High Laser power stability, good light beam quality, air-cooling, maintenance free, long using life by imported CO2 Laser.

2. High processing accuracy, high marking speed and good stability base on imported high-speed galvanometer.

3. Convenient OperationConvenient data processing with dedicated laser marking software. Interface is simple and friendly, easy operation.

4. Available support file format:  PLTDXFAISDTBMPJPGJPEGTGAPNGTIFTIFF, etc.

5. Support one-dimensional code and two-dimensional code marking such as Code39EANPDF417DATAMATRIX, etc.

6. Option function: marking-on-the-fling, rotary marking and X.Y 2D platform.

Specifications of CO2 Laser Marking Machine

Model

MC-10

MC-30

Laser type

Imported CO2 Laser

Laser power

10W

30W

Laser wavelength

10.6μm ,10.2μm,9.3μm Optional.

Laser frequency

1 - 20kHz

Peak Power Stability

≦5% rms

M2 Beam Quality

1.3

Laser cooling method

Air Cooling

Marking speed

≦6000 mm/s

Marking area

Stand marking size: 100 mm × 100 mm;

Max marking size: 200 mm × 200 mm.

Minimum line width

0.07 mm

Repetitive of positioning accuracy

0.001 mm

Ambient temperature

5℃-40

Ambient humidity

10%-85%RH, Non-Condensing

Power Supply

220V/50Hz

Power of machine

600W

800W

Total weight

170kg

Software language

Chinese,English,Japanese,Korean

Font Format

Support true type including JSF, SHX,DMF

Support bar code format

One-Dimension code:CODE39, CODE93,CODE128,ENA standard, EAN-128;

Two-Dimension code: DataMatrix, QRcode, PDF417, micro QRcode

Support file format

BMP,JPG,PNG,TIF,GIF,TGA,DXF,AI,AST,PLT

Special custom functions

Rotating marking function(marking while rotating);

Flying marking function(marking while conveyor belt moving);

Add X/Y axes motion platform;

Automatic loading and unloading.
