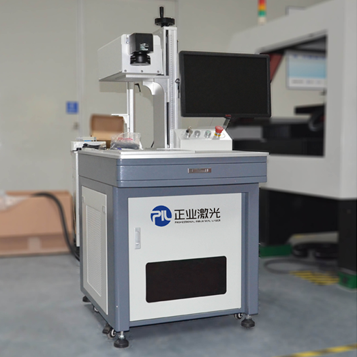

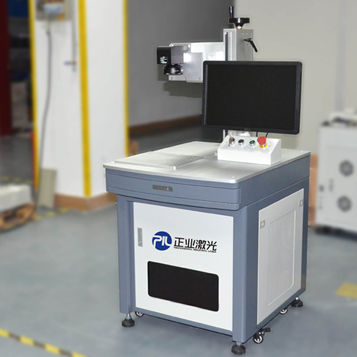

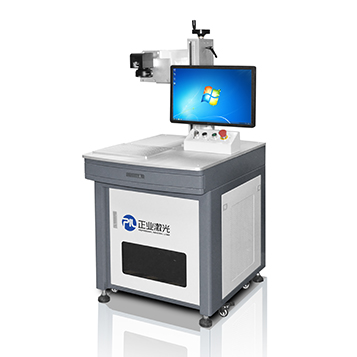

UV Laser Marking Machine Series MUV-3/5
  • Usage
  • Features
  • Parameters
  • Video

The machine employs the imported UV laser and imported high-speed galvanometer as its central devices. It is widely used for metal or nonmetal’s surface marking to make up for the lack of IR Laser’s processing ability. The main applicable materials are electronic products shell marking, battery charger, data line, mobile phone, computer fitting marking, electronic components, jewellery, horologe marking, PCB, FPC marking and cutting, Glass product marking, metal, alloys marking and plastics material’s marking, etc.

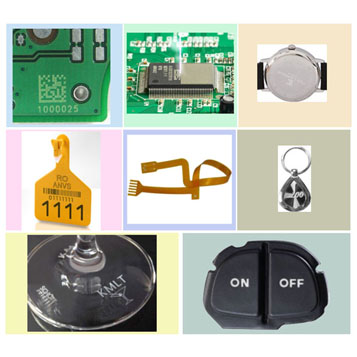

APPLICATIONS


It is widely used for consumer electronic products, electronic components,jewellery , horologe, Food and beverage packaging,Medical packaging, PCB/FPC, glass container, etc.

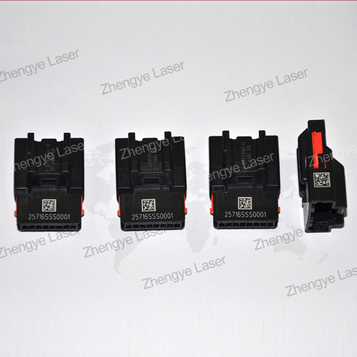

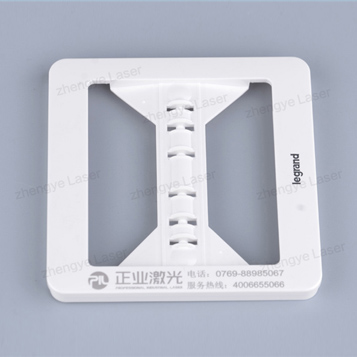

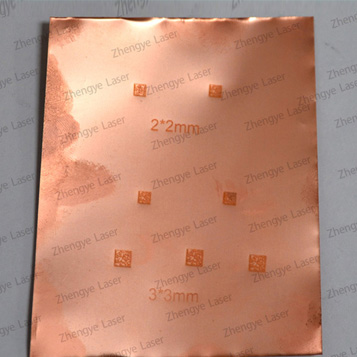

UV Laser Marking Machine Series MUV-3/5 sample :


1)Hyper-fine Laser marking base on Imported UV Laser’s good light beam quality and small focusing spot.


2)Good processing effect and wide applicable material type base on mild heat-affected of UV Laser marking.


3)High processing accuracy, high marking speed and good stability base on imported high-speed galvanometer.


4)Convenient OperationConvenient data processing with dedicated laser marking software. Interface is simple and friendly, easy operation.


5)Available support file format:  PLTDXFAISDTBMPJPGJPEGTGAPNGTIFTIFF, etc.


6)Support one-dimensional code and two-dimensional code marking such as Code39EANPDF417DATAMATRIX, etc.


7)Option function: marking-on-the-fling, rotary marking and X,Y 2D platform.

Specifications of UV Laser Marking Machine

Model

MUV-3

MUV-5

Laser type

Imported UV Laser

Laser power

3W

5W

Laser wavelength

355 nm

Laser frequency

300-100 kHz

Laser power stability

≦5% rms

M2 beam quality

≦1.3

Laser cooling method

Air Cooling

Marking speed

≦6000 mm/s

Marking area

Stand marking size: 100 mm × 100 mm;

Optional marking size: 50 mm × 50 mm~200 mm × 200 mm.

Minimum line width

0.01 mm

Minimum character

0.1 mm

Repetitive of positioning accuracy

0.003 mm

Ambient temperature

15℃-35℃

Ambient humidity

10%-85%RH, Non-Condensing

Power Supply

220V/50Hz

Power of machine

800W

Total weight

170kg

Software language

Chinese,English,Japanese,Korean

Font Format

Support true type, JSF, SHX,DMF

Support bar code format

One-Dimension code:CODE39, CODE93,CODE128,ENA standard, EAN-128;

Two-Dimension code: DataMatrix, QRcode, PDF417, micro QRcode

Support file format

BMP,JPG,PNG,TIF,GIF,TGA,DXF,AI,AST,PLT

Special custom functions

Rotating marking function(marking while rotating);

Flying marking function(marking while conveyor belt moving);

Add X/Y axes motion platform;

Automatic loading and unloading.
