QR Code PCB Laser Marking Machine PCB-0909Brand: PIL
PCB inline QR code laser marking machines are mainly used for automatic engraving QR code on PCB surface (different model according to PCB's size ), available on white oil, green oil, black oil and other inks and copper surface . It can automatically engrave QR code of raw materials procurement, production process, batch, manufacturer, date , and destination for trace ability and management.

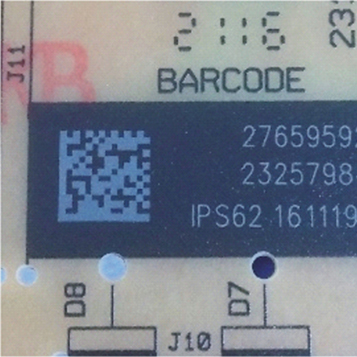

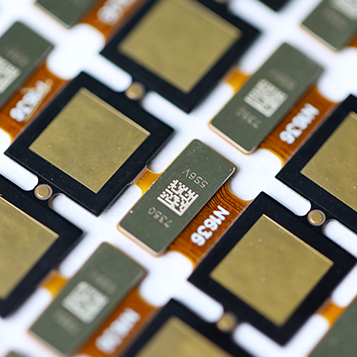

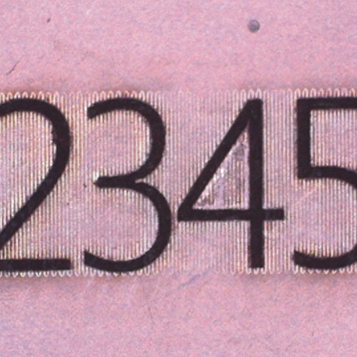

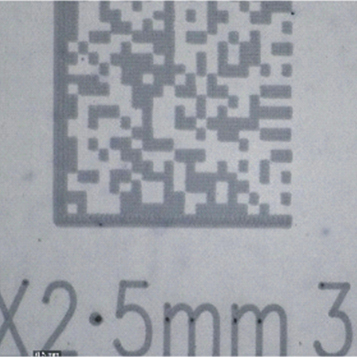

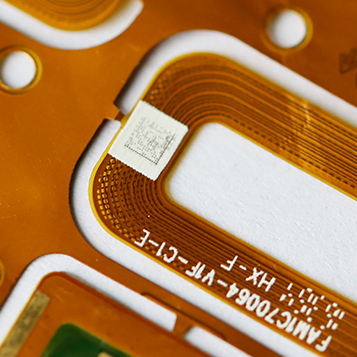

QR Code PCB Laser Marking Machine PCB-0909 sample :
1, Imported CO2 laser, fiber laser, green laser, UV laser, stability performance.
2, Imported high speed vibrating mirror, high processing precision and marking speed, stable performance.
3, Easy to use software interface , easy to learn.
4,Automatically obtain the work order, product batch number, material name encoding, specifications and other information and automatic marking.
5, Automatically read and save the QR code, record and alarm if not available.
6, Automatic feeding machines can be customized.
7,Environmental friendly, less consumables,less pollution, free maintenance compared to ordinary jet printing way.

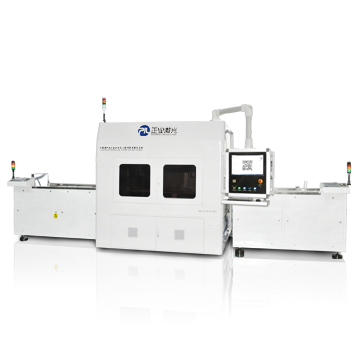

Large Panel PCB Automatic Inline QR Code Laser Engraving System
UV lasers, green laser, fiber laser, CO2 laser optional
100mm×100mm(standard lens);Max up to 200mm×200mm (depending on the type of laser, lens)
6000 mm/s (for example: white ink, size 3 × 3mm, contains 45-digit 2D bar code,complete in 1 second,the actual processing efficiency depends on the laser type and laser power)
Marking position accuracy
±0.08mm (can be customized according to customer requirements)
Applicable PCB size
Size is less than 800mm×800mm;
Thickness 0.5mm-10mm (can be customized);
PCB rigid board white ink, green ink, blue ink and other inks; copper (depending on the type of laser)
220V/50Hz,total power about 3500W
Code 39, Code 25, Code 93, Code 128, EAN-13, EAN-8, ISBN,etc.
2D dimension code
Datamatrix, QR Code, micro QR Code, PDF417, Code 49, Code 16K ,etc.
QR code size
1.5mm×1.5mm~10mm×10mm(depends on the laser type)
Supports TrueType fonts, single font (JSF), SHX font, bitmap fonts (DMF)
Minimum character height
0.1mm ~0.4mm(depending on the laser type)
DXF, PLT, Excel, TXT file format
Supports automatic photo, 2, 3, 4 points localization way
Automatic read code
Read qr code automatically and save data, alarm if can't read
Can be connected to ERP/MES/SAP system, automatic access to the order number, product batch number, material code, commodity information etc. and code automatically

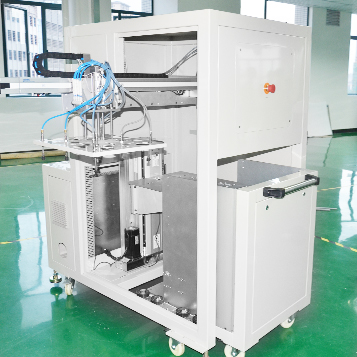

Automatically loading system can be customized
Automatically unloading system can be customized
Turnover device can be customized
Other automatic system
Other automatic system of connection to product line
