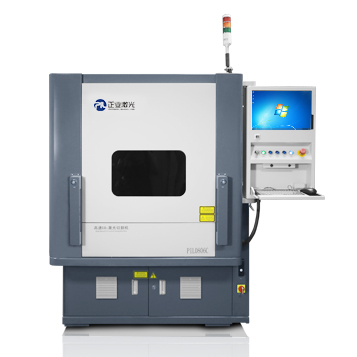

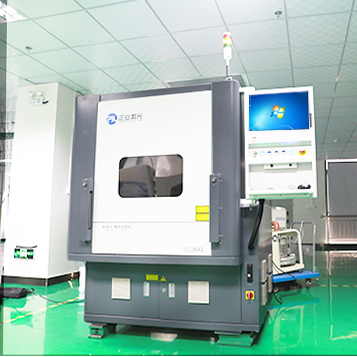

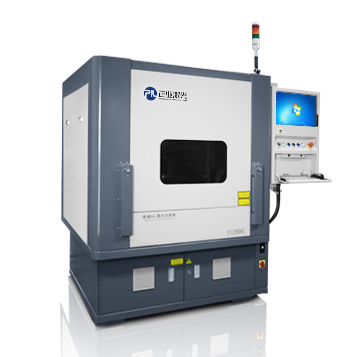

CO2 Laser Cutting Machine

Brand: PIL

Model: PIL0806C

Processing Platform:  800mm×600mm

Laser Power: 30W / 60W /100W



  • Usage
  • Features
  • Parameters
  • Video

The machine is equipped with imported metallic-sealed-off CO2 laser, natural granite base, imported servo motor, high precision double screw driver gantry structure, and large work table. It is used to cut PET, Acrylic, Aramid fiber, Leather, Paper, Wood, Rubber, Kevlar, Plastic and other non-metallic film materials.

The machine has high processing efficiency, good quality, high accuracy, its performance is much higher than the same kinds of laser machine in the market.

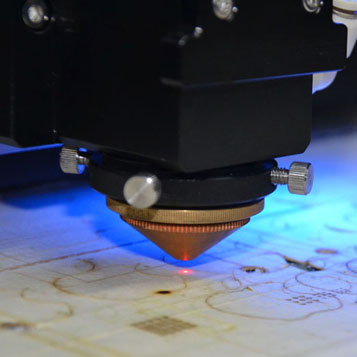

High Speed CO2 Laser Film-cutting Machine sample :

 Security and reliability:

 High security and reliability of marble base as well as fully enclosed design.


High speed and high precision

 Adopts imported servo motor, the imported guide rail, stationary gantry structure, imported NC system. The machine has good performance with high cutting speed, smooth corner and high stability.


Long Using Life

 The machine is with long life using the imported metallic-sealed-off CO2 laser.


Good Cutting Effect

With excellent optical path design, produce a perfect focus spot, small thermal effect.


Convenient Operation

Convenient data processing with dedicated laser cutting software. File formats include DXF, PLT, etc. Interface is simple and friendly, easy operation.


 CCD can be optional

Auto-finding mark point, work base on the designed graphics and position.

Specifications of CO2 Laser Cutting Machine

Model

PIL0806C-30C

PIL0806C-60C

PIL0806C-100C

Laser Type

Imported CO2 Laser

Laser Power

30W

60W

100W

Laser repetition frequency

≤25kHz

Maximum Processing Size

800mm×600mm

Worktable Maximum Operating Speed

500mm/s

Worktable Positioning Accuracy

±0.01mm

Repetitive Positioning Accuracy of Worktable

±0.005mm

Total Processing Accuracy

±0.05mm

Minimum Line Width

0.1mm

File Format

*.dxf*.plt

Electric Power Supply

Three-phase Five-wire SystemAC380V 50Hz/3.5kW

Dimensions(L x W x H)

1470mm×1420mm×1840mm

Weight

1100kg

Environmental Temperature

5℃-40

Environmental Humidity

≤85%RH, Non-condensing

Ground Amplitude

5μm

Ground Pressure

60×103Kgf/m2

Control System

Imported NC System

Optional Features

CCD automatic positioning/Automatic loading and unloading mechanism
