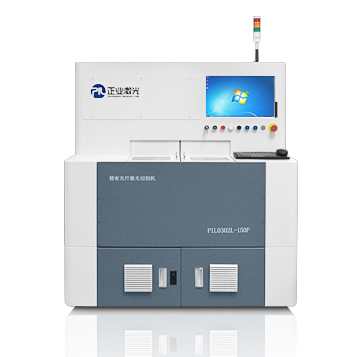

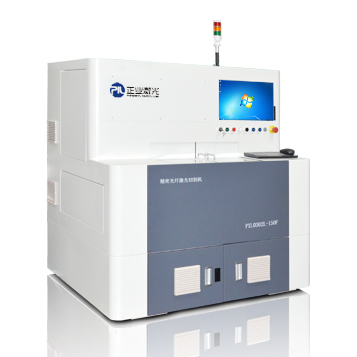

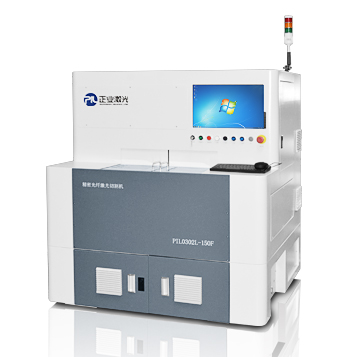

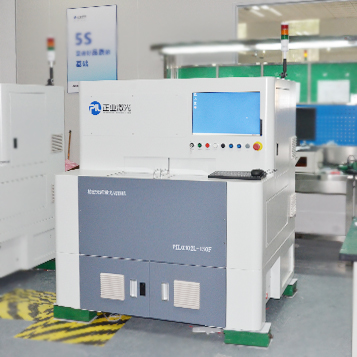

High Precision Fiber Laser Cutting Machine

Brand: PIL

Model : PIL0302L-150F

Laser Source: Imported Fiber Laser

Laser Power : 150 W

Maximum Processing Size : 350 mm × 250 mm


  • Usage
  • Features
  • Parameters
  • Video

The machine is equipped with fiber laser, natural granite base, imported linear motor, high precision cross platform structure. It is used to cutting, drilling and scribing a variety of alloy sheet, sapphire, ceramics and other sheet materials. It is widely applied to the IT industry, automobile, LED, precision machinery and so on.


High Precision Fiber Laser Cutting Machine sample :


Security and reliability

High security and reliability of marble base as well as fully enclosed design.


High speed and high precision

Adopts imported linear motor, the imported guide rail, Cross sliding table structure, imported NC system, The machine has good performance with high cutting speed, smooth corner and high stability.


Long using Life

The machine is with long life using the imported fiber laser. High efficiency photoelectric conversion.


Good cutting effect

With excellent optical path design, produce a perfect focus spot, small thermal effect.


Convenient Operation

Convenient data processing with dedicated lase cutting software. File formats include DXF, PLT, etc. Interface is simple and friendly, easy operation.


 CCD can be optional

Auto-finding mark point, work base on the designed graphics and position.



Specification of High Precision Fiber Laser Cutting Machine

MODEL

PIL0302L-150F

Laser Source

Imported Fiber Laser

Laser Power

150W

Laser repetition frequency

350mm×250mm

Maximum Processing Size

800mm/s

Worktable Maximum Operating Speed

10000 mm/s2

Positioning Accuracy of Table

±0.003mm

Repetitive Positioning Accuracy of Table

±0.001mm

Total Accuracy

±0.03mm

Minimum Line Width

0.06mm

File Format

*.dxf, *.plt

Electric Power Supply

Three-phase Five-wire SystemAC380V 50Hz/5kW

Dimensions(L x W x H)

1280mm×1060mm×1580mm

Weight

980kg

Environmental Temperature

10℃-40

Environmental Humidity

 10%-85%RH, Non-condensing

Ground Amplitude

≤5μm

Ground Pressure

60×103Kgf/m2

Control System

Imported NC System

Optional Function

CCD positioning/Automatic loading and unloading mechanism
