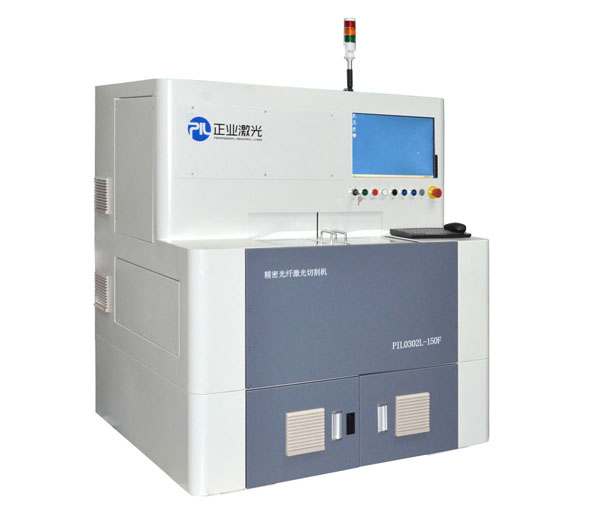

Fiber Laser Cutting Machine Composition Structure

Fiber laser cutting machine has been widely used in the field of metal processing. In the purchase of fiber laser cutting machine, many customers want to know the component, we can come to explore.

1.fiber lasers: laser beam energy generated the power to cut the material, fiber laser cutting machine is the most core components, the price is relatively expensive.

2.cutting head: cutting head includes focusing lens, lens, sensors, nozzles and other parts, the laser beam light to the surface of the material through the cutting head.

3.optical path: make the laser beam transfer to the required place, in order to make the beam path does not fail.

4.machine table: fiber laser cutting machine achieve X, Y, Z axis of the mechanical part of the movement, used for the placement of cutting materials.

5.linear guide: linear guide movement is used to support and guide the moving parts, according to a given direction to do reciprocating linear motion.

6.CNC operator station: used to control the entire fiber laser cutting machine workflow, generally equipped with computer and professional design software.

7.chiller: chiller plays a role in cooling.

8.auxiliary gas: including cylinders and air compressors, auxiliary gas blown away the role of slag and combustion in the cutting of metal, also has a protective effect on the cutting head.
